Parker MAFC Series Cup Line Filter - High Flow Filter for Industrial and Chemical Systems
Parker MAFC Series Cup Line Filter - High Flow Filter for Industrial and Chemical Systems
SKU:VAL-4a1467
Parker MAFC Series Cup Line Filter - High-flow, high-pressure filter for industrial and chemical applications.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Parker MAFC Series Cup Line Filter - High Flow Filter for Industrial and Chemical Systems
$299.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Series Cup Line Filter - High Flow Filter for Industrial and Chemical Systems
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAFC Series Cup Line Filter is a high-flow filter designed for high-pressure systems requiring exceptional flow rates and superior filter surface area. Ideal for industrial and chemical processing applications, this filter features a cup design that offers up to six times more effective filter area compared to disc-type units. With quick and easy filter element replacement, this filter ensures continuous and efficient operation. The filter is compatible with various micron sizes and can be customized for specific requirements, making it a reliable choice for critical filtration needs.

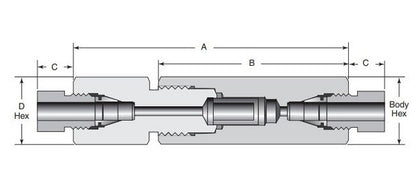

Product Specifications
Dimensions A
4.40 in
Dimensions B
3.06 in
Dimensions Body Hex
1 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions Cover Gland Torque
65 ft·lb
Dimensions Cup Filter Pn
203A-2916
Dimensions D Hex
15/16 in
Dimensions Micron Size
35
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
3/8
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
