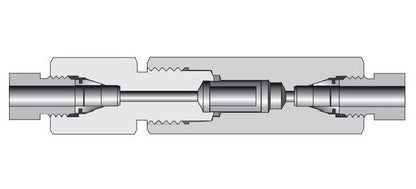

Enhance the performance of your high-pressure industrial systems with Parker’s MAFC Series Cup Line Filter. Designed for high flow rates and maximum filter surface area, this filter features a cup design providing six times more effective filter area than disc-type units. Easily replaceable filter elements and compatibility with 2507 Super Duplex option make maintenance seamless. With a pressure rating of 15000 psi and micron size of 65, this filter ensures optimal system cleanliness and efficiency.
Product Specifications

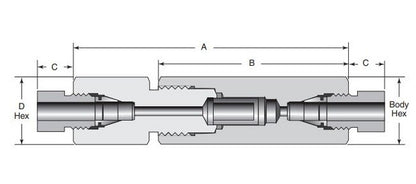

Dimensions A
4.40 in
Dimensions B
3.06 in
Dimensions Body Hex
1 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions Cover Gland Torque
65 ft·lb
Dimensions Cup Filter Pn
204A-2916
Dimensions D Hex
15/16 in
Dimensions Micron Size
65
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
3/8
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
