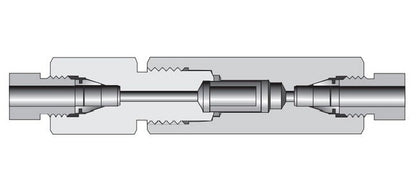

The Parker MAFC Series Cup Line Filter is a top choice for high-pressure systems needing superior flow rates and maximum filter area. Ideal for industrial and chemical processing applications, its unique cup design offers up to six times more effective filter area than disc-type filters. This filter ensures easy and quick element replacement, improving maintenance efficiency. With reliable construction and high-pressure tolerance, the MAFC Series is a trusted solution for demanding environments.
Product Specifications

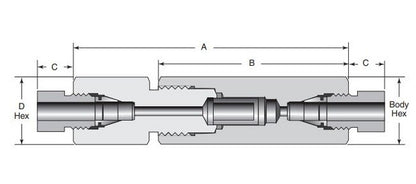

Dimensions A
8.71 in
Dimensions B
6.25 in
Dimensions Body Hex
2 1/8 in
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions Cover Gland Torque Max
700 ft·lb
Dimensions Cover Gland Torque Min
500 ft·lb
Dimensions Cup Filter Pn
249A-2916
Dimensions D Hex
1 7/8 in
Dimensions Micron Size
35
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
