Parker MAFC Series High Flow Cup Line Filter
Parker MAFC Series High Flow Cup Line Filter
SKU:VAL-b934f4
Enhance high-pressure systems with Parker's MAFC Series Cup Line Filter featuring superior flow rates and maximum filtering efficiency for industrial and chemical processing applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Parker MAFC Series High Flow Cup Line Filter
$149.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Series High Flow Cup Line Filter
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

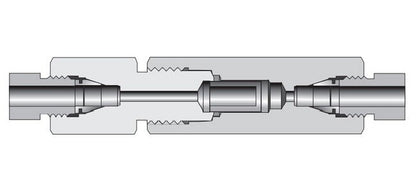

The Parker MAFC Series Cup Line Filter is an essential component for high-pressure systems that demand exceptional flow rates and maximum filter surface area. Ideal for industrial and chemical processing applications, this filter boasts a unique cup design that provides up to six times more effective filter area compared to disc-type units. With quick and easy filter element replacement, it ensures convenient maintenance. Designed to meet rigorous standards, this filter delivers optimal performance in critical environments.
Product Specifications
Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions Cover Gland Torque
100 ft·lb
Dimensions Cup Filter Pn
205A-2916
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
5
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
9/16
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
