Parker MAFC Series High Flow Cup Line Filter
Parker MAFC Series High Flow Cup Line Filter
SKU:VAL-e2534d
Ensure high-flow filtration efficiency with the Parker MAFC Series Cup Line Filter, ideal for industrial and chemical processing applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Parker MAFC Series High Flow Cup Line Filter
$279.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Series High Flow Cup Line Filter
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

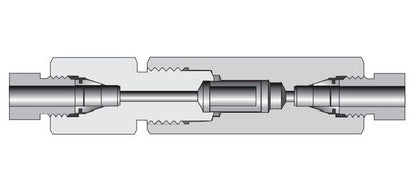

The Parker MAFC Series Cup Line Filter is a top choice for high-pressure systems in industrial and chemical processing applications. With a high flow rate and exceptional filter surface area, this filter exceeds disc-type units by up to six times. Designed for quick and easy element replacement, it features a durable cup design to meet the demands of demanding environments. With a pressure rating of 15000 psi and a micron size of 35, this filter ensures efficient and reliable filtration to safeguard your equipment and processes.
Product Specifications

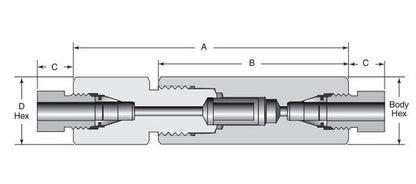

Dimensions A
4.40 in
Dimensions B
3.06 in
Dimensions Body Hex
1 in
Dimensions C
.63 in
Dimensions Connection
3/8 MPI™
Dimensions Cover Gland Torque
65 ft·lb
Dimensions Cup Filter Pn
203A-2916
Dimensions D Hex
15/16 in
Dimensions Micron Size
35
Dimensions Orifice
.219 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
3/8
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
