Parker MAFC Series High Flow Cup Line Filter
Parker MAFC Series High Flow Cup Line Filter
SKU:VAL-46d82d
High-flow cup line filter for industrial and chemical processing, providing superior filter area and easy element replacement.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Parker MAFC Series High Flow Cup Line Filter
$249.99
Quantity: 1
Claim Your Seller Account
Parker MAFC Series High Flow Cup Line Filter
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

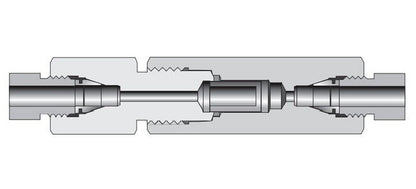

The Parker MAFC Series Cup Line Filter is a top choice for high-pressure systems needing exceptional flow rates and superior filter area. Ideal for industrial and chemical processing applications, its cup design provides six times more effective filter area than disc-type units. Quick and easy filter element replacement adds to its convenience. Ensure clean fluids and efficient filtration with this high-performance filter.
Product Specifications
Dimensions A
5.56 in
Dimensions B
3.94 in
Dimensions Body Hex
1 3/8 in
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions Cover Gland Torque
100 ft·lb
Dimensions Cup Filter Pn
208A-2916
Dimensions D Hex
1 3/16 in
Dimensions Micron Size
65
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi | 1035 bar
Dimensions Tubing Od
1/2
Specifications Note
All filters furnished complete with connection components unless otherwise specified. All dimensions for reference only and subject to change.Parker Autoclave Engineers disc filters are designed to filter small amounts of process particles. It is recommended that all fluids are thoroughly cleaned prior to entering the higher pressure system. 2507 Super Duplex filters may be supplied with four flats in place of standard hex. Filter media is 316 SS. Pressure differential not to exceed 1,000 psi (69 bar) in a flowing condition.
