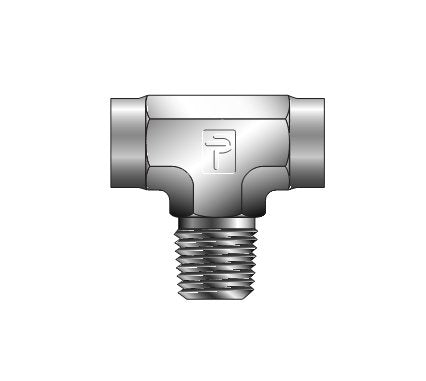

Parker Male Branch Tee MBT Fitting with FNPT Connections
Parker Male Branch Tee MBT Fitting with FNPT Connections
SKU:FIT-ff8cfe
Precision-engineered Parker Male Branch Tee MBT Fitting for leak-free connections, ideal for institutional applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Branch Tee MBT Fitting with FNPT Connections
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Branch Tee MBT Fitting with FNPT Connections
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Branch Tee MBT Fitting is a precision-engineered solution for leak-free connections in process, instrumentation, and industrial applications. Manufactured to the highest quality standards, this fitting is available in steel and brass materials, with special orders possible for other materials. Designed for use in instrumentation connections between pipe and tube sizes, it features rolled male threads for extra strength, exceeds ANSI standards, and is packaged in sealed, clear plastic shrink-wrapped boxes for cleanliness. With working pressures up to 5900 psig, this fitting is ideal for demanding institutional environments.
Product Specifications
Dimensions Connection Type
FNPT x FNPT x MNPT

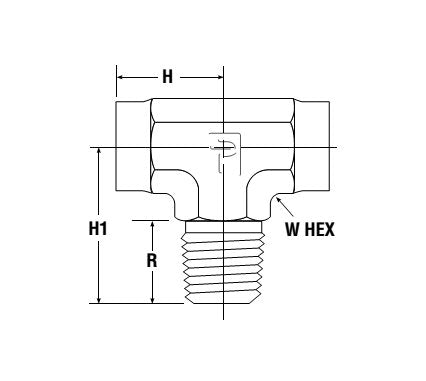

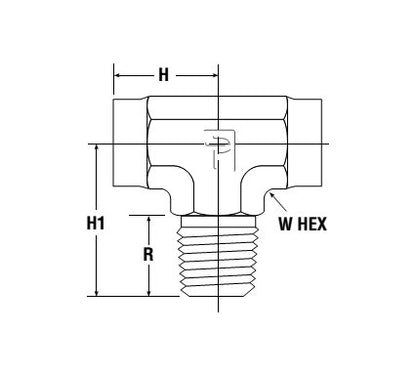

Dimensions H
.66 in
Dimensions H1
.78 in
Dimensions Npt Thread Female
1/8
Dimensions Npt Thread Male
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
2900 psig
Dimensions Working Pressure Stainless Steel
5500 psig
Dimensions Working Pressure Steel
5900 psig
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
