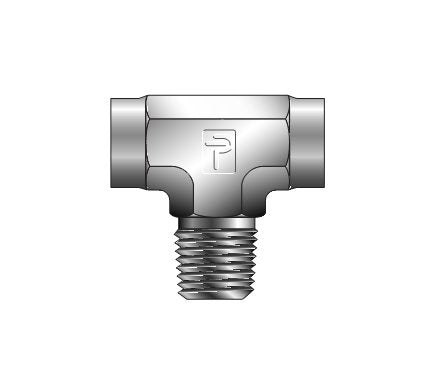

Parker Male Branch Tee MBT - Instrument Pipe Fitting
Parker Male Branch Tee MBT - Instrument Pipe Fitting
SKU:FIT-ab731e
Precision-engineered Male Branch Tee MBT for leak-free connections in process, power, and industrial applications. ANSI B31.1 & B31.3 compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Branch Tee MBT - Instrument Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Branch Tee MBT - Instrument Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Branch Tee MBT is a precision-engineered instrument pipe fitting designed for leak-free connections in critical process, power, and industrial applications. Crafted from high-quality materials and manufactured to stringent standards, this fitting ensures reliable performance and durability. With working pressures up to 6000 psig, this tee is suitable for diverse installations. Packaged in sealed, clear plastic shrink-wrapped boxes, it meets ANSI B31.1 and B31.3 standards for superior quality and safety.
Product Specifications

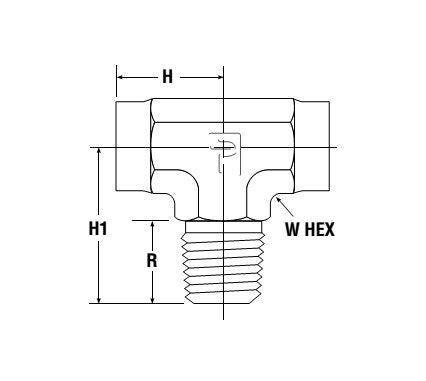

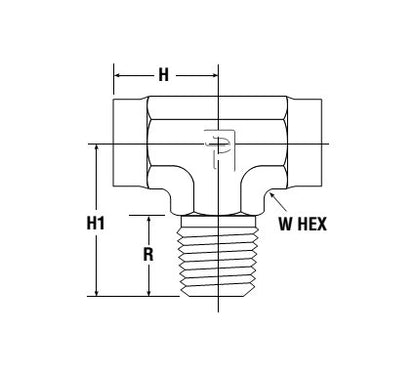

Dimensions Connection Type
FNPT x FNPT x MNPT
Dimensions H
.88 in
Dimensions H1
1.09 in
Dimensions Npt Thread Female
1/4
Dimensions Npt Thread Male
1/4
Dimensions R
.56 in
Dimensions Working Pressure Brass
3000 psig
Dimensions Working Pressure Stainless Steel
5600 psig
Dimensions Working Pressure Steel
6000 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
