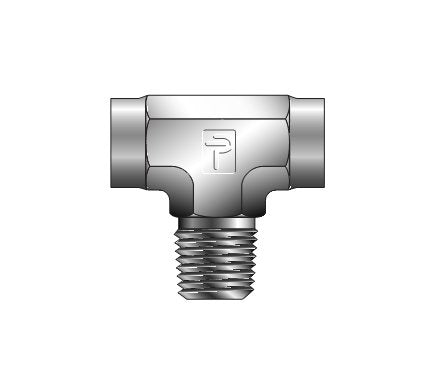

Parker Male Branch Tee MBT Instrumentation Pipe Fitting
Parker Male Branch Tee MBT Instrumentation Pipe Fitting
SKU:FIT-b9851a
Precision-designed Parker Male Branch Tee MBT for leak-free connections in instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Branch Tee MBT Instrumentation Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Branch Tee MBT Instrumentation Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Branch Tee MBT is a precision-engineered instrumentation pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured to the highest quality standards, this fitting is available in steel and brass materials with optional materials upon special order. With features like precision machining from forgings and bar stock, sealed packaging for cleanliness, and adherence to ANSI standards, the Male Branch Tee MBT ensures reliable performance in demanding environments.
Product Specifications

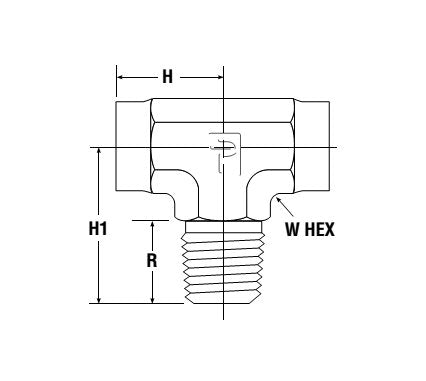

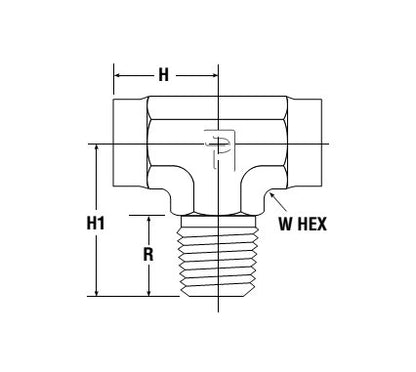

Dimensions Connection Type
FNPT x FNPT x MNPT
Dimensions H
.50 in
Dimensions H1
.72 in
Dimensions Npt Thread Female
1/16
Dimensions Npt Thread Male
1/16
Dimensions R
.38 in
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
7000 psig
Dimensions Working Pressure Steel
7500 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
