Parker Male Close Nipple Fitting - MNPT to MNPT, 1/16"
Parker Male Close Nipple Fitting - MNPT to MNPT, 1/16"
SKU:FIT-3493fa
High-quality Parker Male Close Nipple Fitting for leak-free connections in process and instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Close Nipple Fitting - MNPT to MNPT, 1/16"
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Close Nipple Fitting - MNPT to MNPT, 1/16"
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Close Nipple Fitting is precision-engineered for leak-free connections in process, power, and instrumentation applications. Crafted from high-quality steel and brass, these fittings offer exceptional durability and reliability. Designed to meet stringent industry standards, they are available in various sizes to accommodate diverse needs. Ideal for institutional procurement, these fittings ensure secure and efficient installations that adhere to strict quality control measures.
Product Specifications

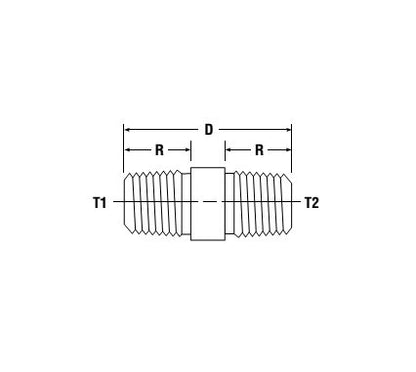

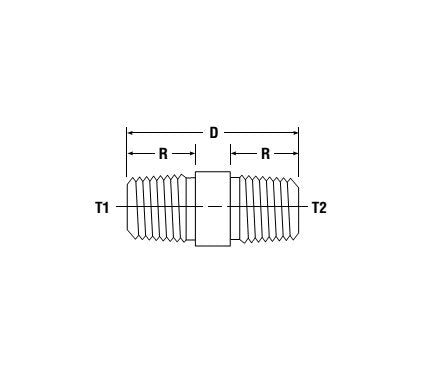

Dimensions Connection Type
MNPT to MNPT
Dimensions D
.75 in
Dimensions Npt Thread Male
1/16
Dimensions R
.34 in
Dimensions Working Pressure Brass
6000 psig
Dimensions Working Pressure Stainless Steel
10000 psig
Dimensions Working Pressure Steel
10500 psig
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
