Parker Male Close Nipple Instrument Pipe Fitting
Parker Male Close Nipple Instrument Pipe Fitting
SKU:FIT-9206b5
Precision-engineered Parker Male Close Nipple Fitting for leak-free connections in instrumentation. Working pressures up to 8000 psig. Exceeds ANSI standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Close Nipple Instrument Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Close Nipple Instrument Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Close Nipple Instrument Pipe Fitting is engineered for precision and reliability in instrumentation applications. Made from high-quality materials like 316 Stainless Steel, Brass, and Steel, it offers leak-free connections with working pressures up to 8000 psig. Designed to meet stringent quality standards, this fitting ensures seamless compatibility between pipe and tube sizes. Packaged in sealed, clear plastic for cleanliness, it exceeds ANSI requirements for National Pipe Taper threads, making it ideal for industrial, power, and instrumentation applications.
Product Specifications

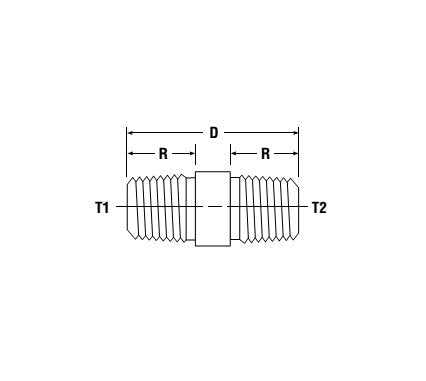

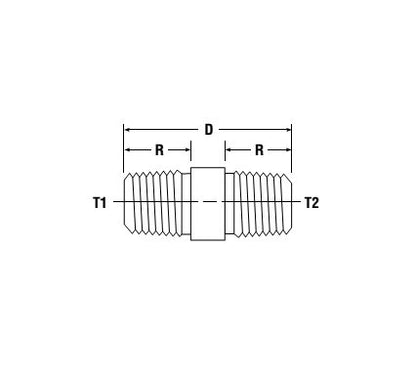

Dimensions Connection Type
MNPT to MNPT
Dimensions D
1.13 in
Dimensions Npt Thread Male
1/4
Dimensions R
.49 in
Dimensions Working Pressure Brass
4100 psig
Dimensions Working Pressure Stainless Steel
7500 psig
Dimensions Working Pressure Steel
8000 psig
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
