Parker Male Close Nipple MCN - 1/8" MNPT to MNPT
Parker Male Close Nipple MCN - 1/8" MNPT to MNPT
SKU:FIT-9b1e4b
Precision-engineered Parker Male Close Nipple MCN for leak-free, high-pressure process control applications
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
Parker Male Close Nipple MCN - 1/8" MNPT to MNPT
$19.99
Quantity: 1
Claim Your Seller Account
Parker Male Close Nipple MCN - 1/8" MNPT to MNPT
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Close Nipple MCN is precision-engineered for leak-free performance in process, power, and industrial applications. Made from high-quality materials like steel and brass, this fitting meets stringent ASTM standards. With working pressures up to 9700 psig, it exceeds ANSI requirements. Ideal for instrumentation connections, it features rolled male threads for durability and sizes ranging from 1/16" to 2" NPT. Packaged in sealed boxes, it ensures cleanliness and adherence to ANSI B31.1 & B31.3 standards.

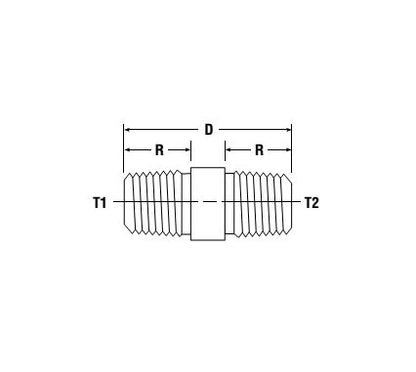

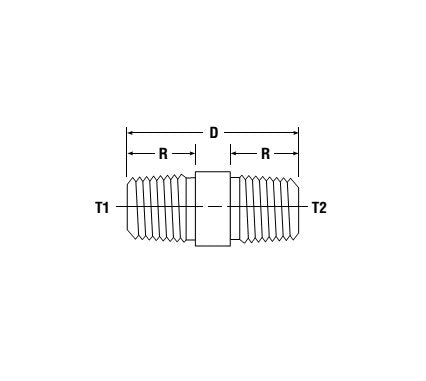

Product Specifications
Dimensions Connection Type
MNPT to MNPT
Dimensions D
.75 in
Dimensions Npt Thread Male
1/8
Dimensions R
.34 in
Dimensions Working Pressure Brass
5600 psig
Dimensions Working Pressure Stainless Steel
9100 psig
Dimensions Working Pressure Steel
9700 psig
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
