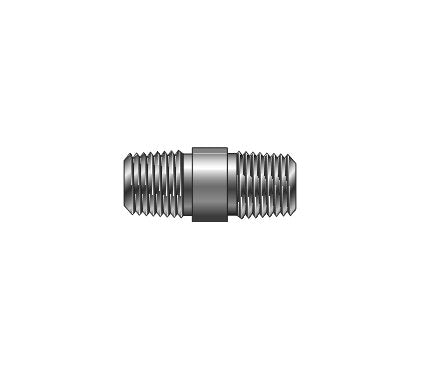

Parker Male Close Nipple MCN Fitting
Parker Male Close Nipple MCN Fitting
SKU:FIT-588e80
Precision-engineered Parker Male Close Nipple MCN Fitting for leak-free, reliable instrumentation connections in industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Close Nipple MCN Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Close Nipple MCN Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Close Nipple MCN Fitting is engineered for precision and durability in instrumentation applications. Manufactured to the highest quality standards, these fittings provide leak-free connections suitable for a wide range of industrial applications. Crafted from high-quality steel and brass materials, with working pressures meeting stringent industry standards, this fitting ensures reliability and performance. Packaged in sealed, clear plastic shrink-wrapped boxes for cleanliness, the Parker Male Close Nipple MCN Fitting is an ideal choice for process control and instrumentation connections.
Product Specifications

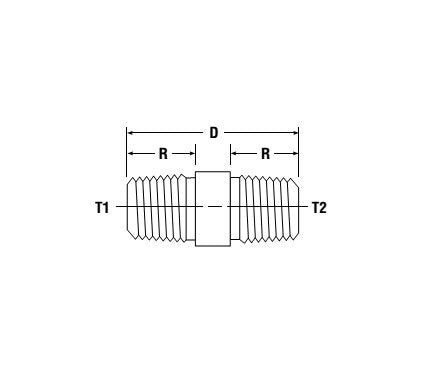

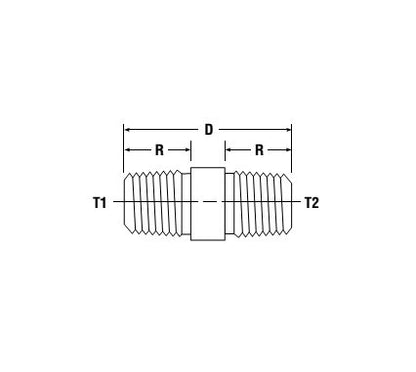

Dimensions Connection Type
MNPT to MNPT
Dimensions D
1.50 in
Dimensions Npt Thread Male
3/4
Dimensions R
.66 in
Dimensions Working Pressure Brass
3800 psig
Dimensions Working Pressure Stainless Steel
6400 psig
Dimensions Working Pressure Steel
6800 psig
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
