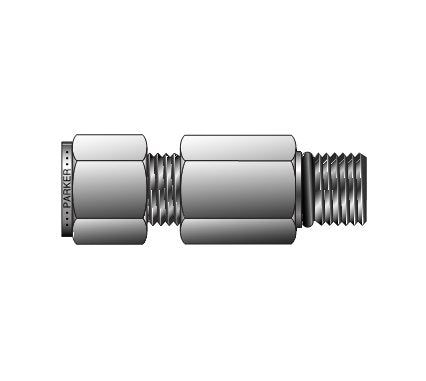

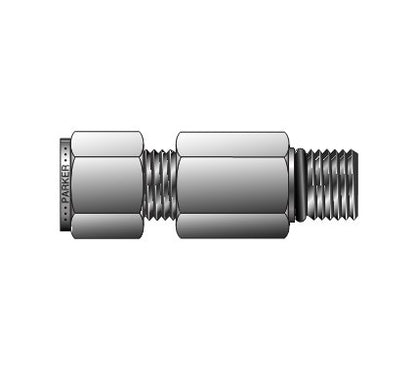

Parker Male Connector to SAE Straight Thread - CPI™/A-LOK® ZHBA/M1SC Tube Fitting
Parker Male Connector to SAE Straight Thread - CPI™/A-LOK® ZHBA/M1SC Tube Fitting
SKU:FIT-0eef5c
Premium Parker Male Connector to SAE fitting for leak-free instrumentation applications. Compliant with ANSI standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread - CPI™/A-LOK® ZHBA/M1SC Tube Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread - CPI™/A-LOK® ZHBA/M1SC Tube Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Connector to SAE Straight Thread is a premium solution for leak-free connections in instrumentation applications. Engineered to meet the highest quality standards, this fitting features a durable construction with materials like 316 stainless steel, brass, and steel. With ASTM bar stock specifications and close grain forgings, it ensures reliability and strength. Compliant with ANSI B31.1, ANSI B31.3, and ANSI B1.20.1 requirements, this fitting is ideal for power, instrumentation, and general industrial applications.
Product Specifications

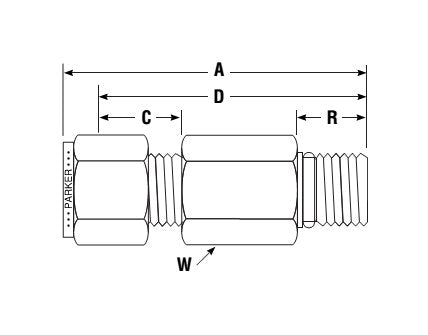

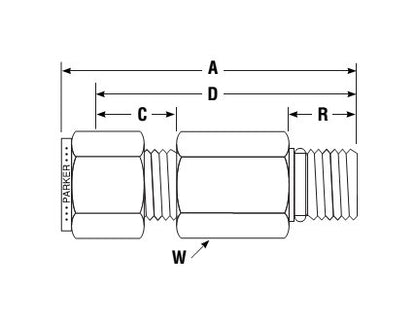

Dimensions A
2.32 in
Dimensions C
.73 in
Dimensions Connection Type
A-LOK® to SAE
Dimensions Inter Changes With
500-IL-5ST
Dimensions O Ring Dash No
3-905
Dimensions R
.36 in
Dimensions Straight Thread Size
1/2-20
Dimensions W Hex
5/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
