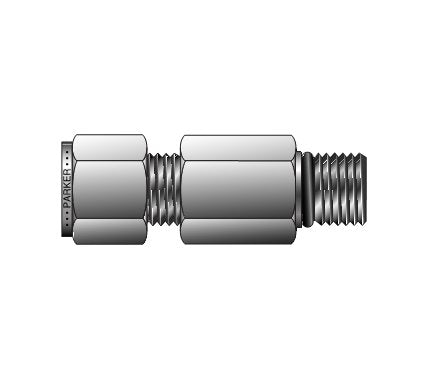

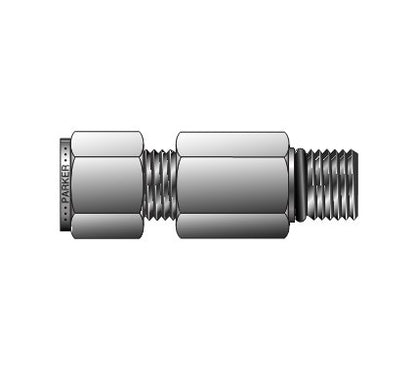

Parker Male Connector to SAE Straight Thread Fitting
Parker Male Connector to SAE Straight Thread Fitting
SKU:FIT-36352c
Premium Parker Male Connector to SAE Fitting for leak-free instrumentation applications, exceeds ANSI standards.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread Fitting
$39.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread Fitting
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Connector to SAE Straight Thread Fitting is engineered for precision and reliability in instrumentation applications. Made from high-quality materials such as 316 Stainless Steel, Brass, and Steel, this fitting ensures leak-free connections critical for process, power, and general industrial functions. With strict adherence to quality control programs, Parker fittings exceed industry standards, including ANSI B31.1 and ANSI B31.3, ensuring compliance with Power Piping and Refiner Piping Codes. Packaged securely and available in various sizes, this fitting is designed to meet the demands of institutional and government procurement requirements.
Product Specifications

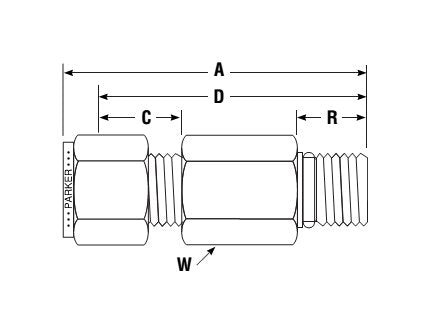

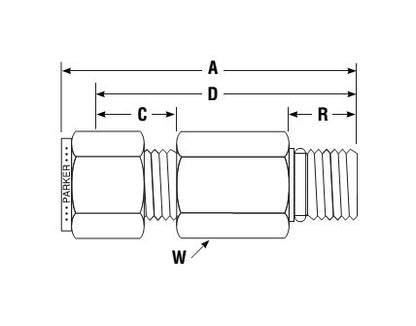

Dimensions A
3.34 in
Dimensions C
.87 in
Dimensions Connection Type
CPI™ to SAE
Dimensions Inter Changes With
1010-IL-10ST
Dimensions O Ring Dash No
3-910
Dimensions R
.50 in
Dimensions Straight Thread Size
7/8-14
Dimensions W Hex
1 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
