Parker Male Connector to SAE Straight Thread Fitting
Parker Male Connector to SAE Straight Thread Fitting
SKU:FIT-92ffca
Precision-made Parker Male Connector with leak-free design for reliable performance in instrumentation applications
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Connector to SAE Straight Thread Fitting is expertly engineered for leak-free connections in process, power, instrumentation, and industrial applications. Crafted with precision from high-quality materials, this fitting ensures reliable performance. Compliant with ANSI standards, it features a range of sizes, robust construction, and sealed packaging. With straight bodies from ASTM bar stock and close grain forging-shaped fittings, this fitting guarantees durability and efficiency, ideal for institutional and government procurement needs.
Product Specifications

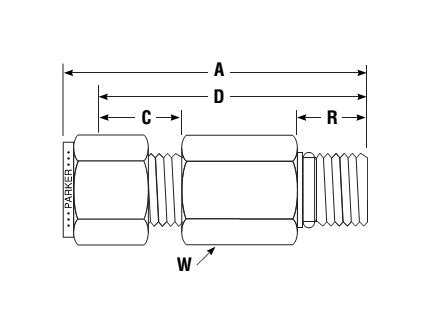

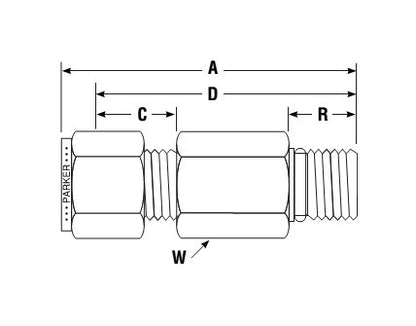

Dimensions A
3.34 in
Dimensions C
.87 in
Dimensions Connection Type
A-LOK® to SAE
Dimensions Inter Changes With
1010-IL-10ST
Dimensions O Ring Dash No
3-910
Dimensions R
.50 in
Dimensions Straight Thread Size
7/8-14
Dimensions W Hex
1 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
