Parker Male Connector to SAE Straight Thread Fitting
Parker Male Connector to SAE Straight Thread Fitting
SKU:FIT-36352c
Precision-engineered Parker Male Connector to SAE Fitting for leak-free connections & optimal performance. Sizes 1/16" to 2" NPT. ASTM & ANSI compliant.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

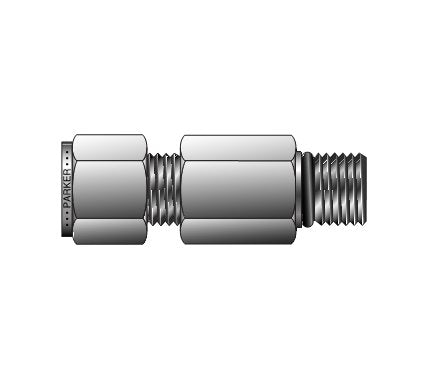

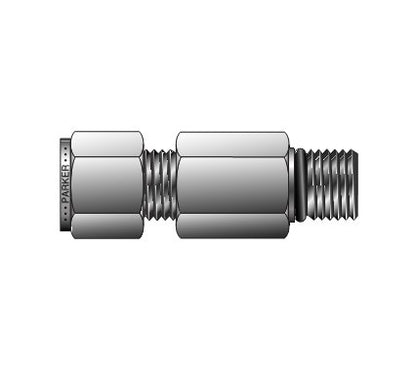

The Parker Male Connector to SAE Straight Thread Fitting is engineered for precision and reliability in process, power, instrumentation, and industrial applications. Manufactured to the highest standards at Parker Hannifin's Instrumentation Products Division, this fitting ensures leak-free connections. Crafted from high-quality materials like 316 Stainless Steel, Brass, and Steel, it offers a wide size range from 1/16" to 2" NPT. With features such as rolled male threads, compliance with ANSI standards, and protection for exposed threads, this fitting guarantees optimal performance. Packaged securely in shrink-wrapped boxes, it meets stringent quality control measures and is ideal for demanding environments.
Product Specifications

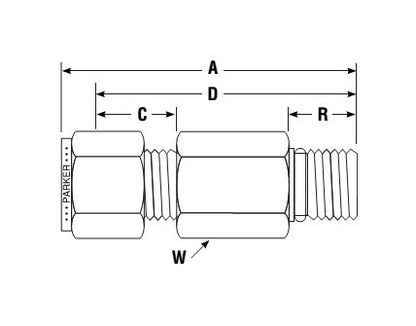

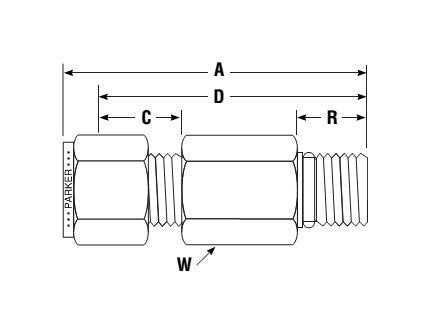

Dimensions A
3.34 in
Dimensions C
.87 in
Dimensions Connection Type
CPI™ to SAE
Dimensions Inter Changes With
1010-IL-10ST
Dimensions O Ring Dash No
3-910
Dimensions R
.50 in
Dimensions Straight Thread Size
7/8-14
Dimensions W Hex
1 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
