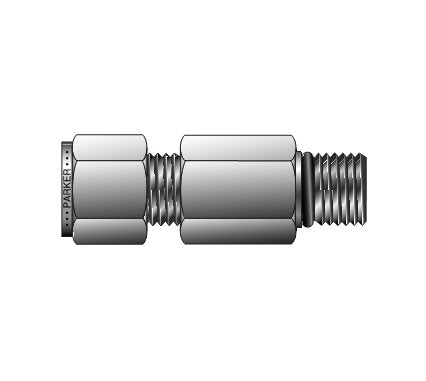

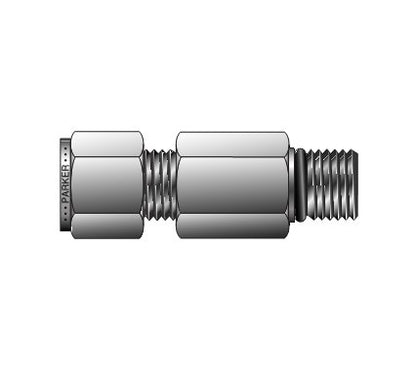

Parker Male Connector to SAE Straight Thread Fitting
Parker Male Connector to SAE Straight Thread Fitting
SKU:FIT-397bbe
Enhance your industrial operations with the Parker Male Connector to SAE Straight Thread Fitting. Engineered for precision, durability, and leak-free performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Connector to SAE Straight Thread is a premium instrumentation pipe fitting engineered to deliver leak-free connections essential for process, power, and industrial applications. Crafted from high-quality materials including 316 Stainless Steel, Brass, and Steel, this fitting ensures superior durability and performance. Compliant with ANSI B31.1 and B31.3 standards, it offers reliable functionality even in demanding environments. Designed with precision, it features straight bodies machined from ASTM bar stock specifications and rolled male threads for added strength. Packaged in sealed, shrink-wrapped boxes, this fitting guarantees cleanliness and efficiency, making it a top choice for institutional and industrial procurement needs.
Product Specifications

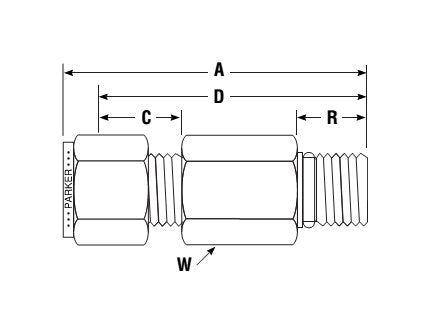

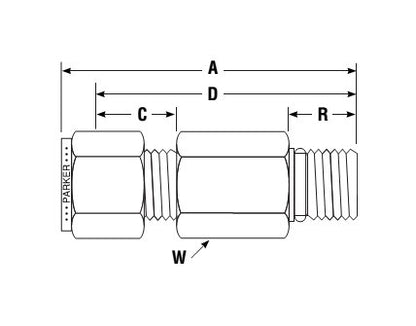

Dimensions A
3.88 in
Dimensions C
.87 in
Dimensions Connection Type
A-LOK® to SAE
Dimensions Inter Changes With
1210-IL-12ST
Dimensions O Ring Dash No
3-912
Dimensions R
.59 in
Dimensions Straight Thread Size
1 1/16-12
Dimensions W Hex
1 1/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
