Parker Male Connector to SAE Straight Thread Fitting
Parker Male Connector to SAE Straight Thread Fitting
SKU:FIT-5b0e55
Precision-engineered Parker Male Connector for leak-free connections in instrumentation applications. Compliant with ANSI standards & ASTM specifications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Connector to SAE Straight Thread Fitting is engineered for precision and reliability in instrumentation applications. This leak-free fitting ensures seamless connections for process, power, and industrial uses. Crafted from high-quality materials meeting ASTM specifications, it offers durability and performance. With sizes ranging from 1/16" to 2" NPT, this fitting is compliant with ANSI standards, including ANSI B31.1 and ANSI B31.3, ensuring safety and efficiency in usage. Packaged in sealed, clear plastic shrink-wrapped boxes, it guarantees cleanliness and protection during storage and transport.

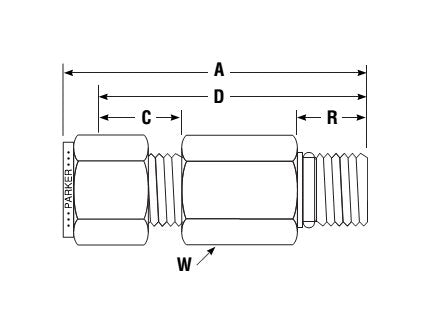

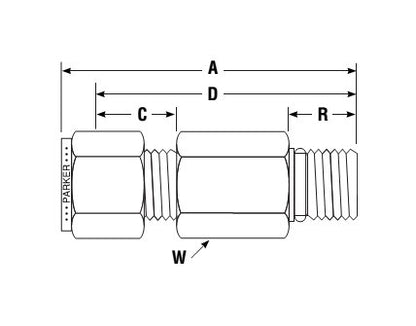

Product Specifications
Dimensions A
4.07 in
Dimensions C
.87 in
Dimensions Connection Type
A-LOK® to SAE
Dimensions Inter Changes With
1410-IL-14ST
Dimensions O Ring Dash No
3-914
Dimensions R
.59 in
Dimensions Straight Thread Size
1 3/16-12
Dimensions W Hex
1 3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
