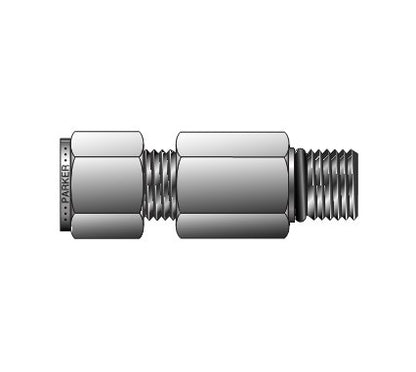

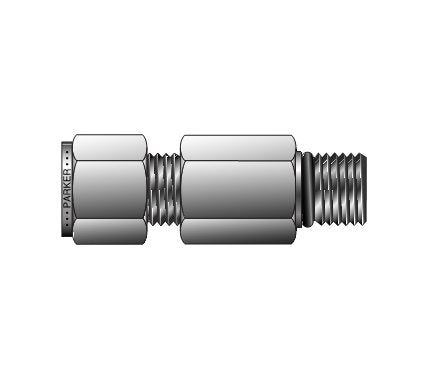

Parker Male Connector to SAE Straight Thread Fitting
Parker Male Connector to SAE Straight Thread Fitting
SKU:FIT-f550c1
High-quality Parker Male Connector for leak-free connections in instrument pipe & ISO fittings. Compliant with ANSI standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Connector to SAE Straight Thread Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Connector to SAE Straight Thread Fitting is engineered to provide leak-free connections for a wide range of applications including process, power, instrumentation, and industrial use. Compliant with ANSI standards, this fitting is meticulously manufactured at Parker Hannifin's Instrumentation Products Division in Alabama. Notable features include quality engineered materials like 316 stainless steel, brass and steel, along with rolled male threads for enhanced strength. Packaged in sealed, clear shrink-wrapped boxes, this fitting meets Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3 requirements, making it a reliable choice for institutional and government buyers.
Product Specifications

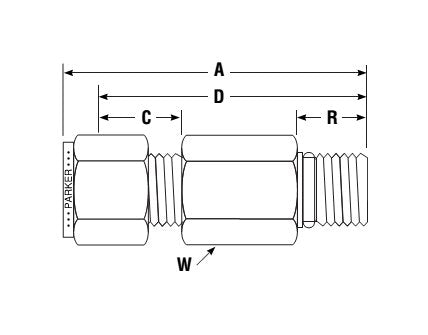

Dimensions A
4.35 in
Dimensions C
1.05 in
Dimensions Connection Type
A-LOK® to SAE
Dimensions Inter Changes With
1610-IL-16ST
Dimensions O Ring Dash No
3-916
Dimensions R
.59 in
Dimensions Straight Thread Size
1 5/16-12
Dimensions W Hex
1 1/2 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
