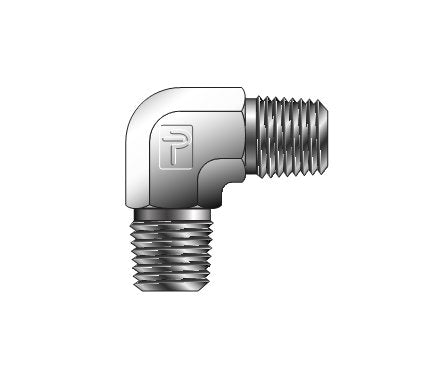

Parker Male Elbow ME - Instrument Pipe Fitting
Parker Male Elbow ME - Instrument Pipe Fitting
SKU:FIT-3bf6c7
Precision-engineered Parker Male Elbow ME fitting for leak-free connections with high working pressures. Exceeds ANSI standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Elbow ME - Instrument Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME - Instrument Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME is a high-quality instrumentation pipe fitting designed for precision and reliability in process, power, and industrial applications. Crafted from durable steel and brass materials, this fitting ensures leak-free connections with working pressures up to 8000 psi. Engineered to exceed ANSI standards, it offers precise thread fittings, sealed packaging for cleanliness, and a range of sizes from 1/16" to 2" NPT. Ideal for instrumentation connections, this Parker fitting is a quality choice for your industrial needs.
Product Specifications
Dimensions Connection Type
NPT to NPT

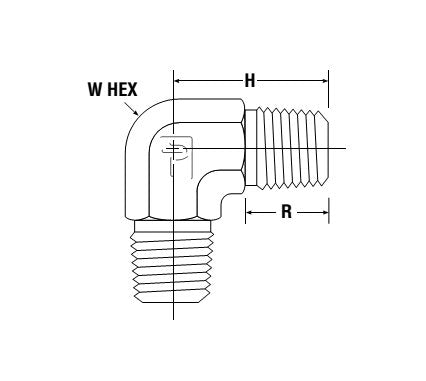

Dimensions H
1.09 in
Dimensions Npt Thread Male
1/4
Dimensions R
.56 in
Dimensions Working Pressure Brass
4100 psi
Dimensions Working Pressure Stainless Steel
7500 psi
Dimensions Working Pressure Steel
8000 psi
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
