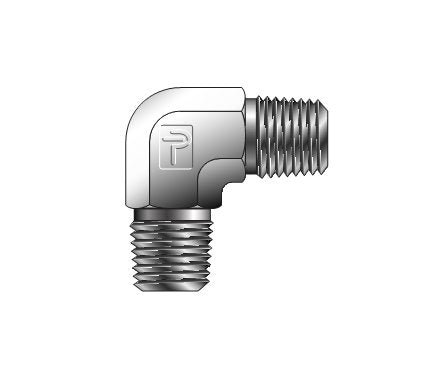

Parker Male Elbow ME - Instrument Pipe Fitting NPT 1/8
Parker Male Elbow ME - Instrument Pipe Fitting NPT 1/8
SKU:FIT-88034c
High-quality Parker Male Elbow ME for precision instrumentation connections. Durable, leak-free, and ANSI standard-compliant.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Parker Male Elbow ME - Instrument Pipe Fitting NPT 1/8
$34.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME - Instrument Pipe Fitting NPT 1/8
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME is a precision-engineered instrument pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Manufactured to the highest quality standards from steel and brass, with straight bodies from bar stock and shapes from forgings, this fitting ensures exceptional strength and durability. With working pressures of up to 9700 psi, sealed packaging, and precision machining conforming to ANSI standards, the Parker Male Elbow ME is ideal for critical instrumentation connections.
Product Specifications

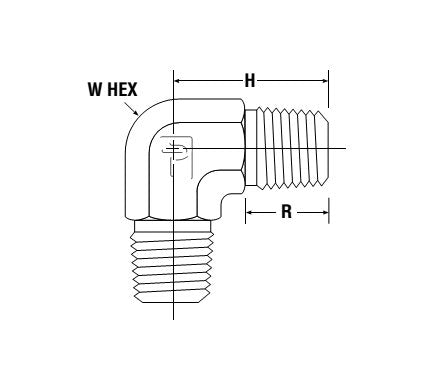

Dimensions Connection Type
NPT to NPT
Dimensions H
.76 in
Dimensions Npt Thread Male
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
5000 psi
Dimensions Working Pressure Stainless Steel
9100 psi
Dimensions Working Pressure Steel
9700 psi
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
