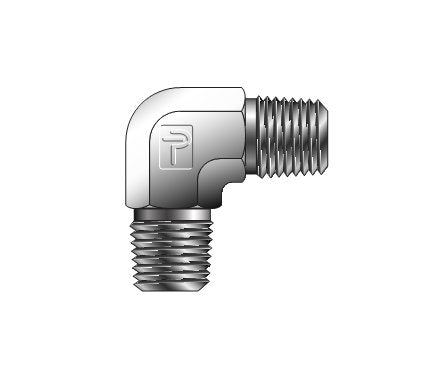

Parker Male Elbow ME - NPT Thread, Precision Machined Fitting
Parker Male Elbow ME - NPT Thread, Precision Machined Fitting
SKU:FIT-f4b259
Precision machined Parker Male Elbow ME - top choice for leak-free connections in instrumentation applications.
Regular price
$32.99
Regular price
Sale price
$32.99
Unit price
per
Initiate Order
Parker Male Elbow ME - NPT Thread, Precision Machined Fitting
$32.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME - NPT Thread, Precision Machined Fitting
$32.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME is a high-quality instrumentation pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Precision machined from forgings and bar stock, this fitting ensures reliability and durability. Engineered for instrumentation applications, it meets strict quality standards and is available in various sizes and materials. With working pressures compliant with ANSI codes, sealed packaging for cleanliness, and NPT threads exceeding ANSI requirements, this Parker fitting is a top choice for precision connections.
Product Specifications

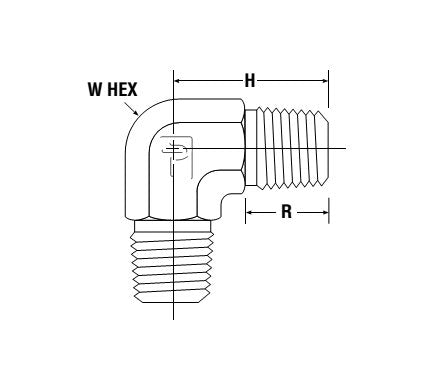

Dimensions Connection Type
NPT to NPT
Dimensions H
1.47 in
Dimensions Npt Thread Male
1/2
Dimensions R
.76 in
Dimensions Working Pressure Brass
3100 psi
Dimensions Working Pressure Stainless Steel
5800 psi
Dimensions Working Pressure Steel
6200 psi
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
