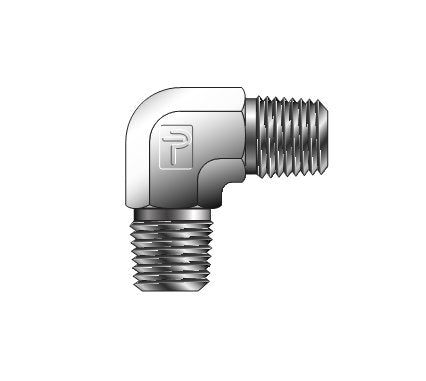

Parker Male Elbow ME | NPT to NPT Fitting
Parker Male Elbow ME | NPT to NPT Fitting
SKU:FIT-7f3461
Precision-engineered Parker Male Elbow ME for leak-free connections in instrumentation applications. Available in steel, brass, or stainless steel materials with working pressures up to 6800 psi.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Elbow ME | NPT to NPT Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME | NPT to NPT Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME is a precision-engineered fitting designed for leak-free connections in instrumentation applications. Manufactured to the highest quality standards, this elbow fitting is ideal for process control and instrumentation connections between pipe and tube sizes. With working pressures up to 6800 psi, available in steel, brass, or stainless steel materials, and complying with ANSI B31.1 and B31.3 standards, the Parker Male Elbow ME offers unmatched reliability and performance for various industrial applications.
Product Specifications

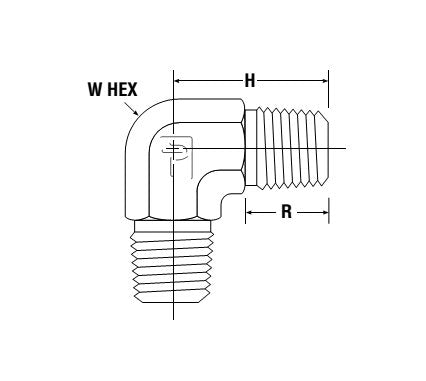

Dimensions Connection Type
NPT to NPT
Dimensions H
1.59 in
Dimensions Npt Thread Male
3/4
Dimensions R
.75 in
Dimensions Working Pressure Brass
3400 psi
Dimensions Working Pressure Stainless Steel
6400 psi
Dimensions Working Pressure Steel
6800 psi
Dimensions W Hex
1 1/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
