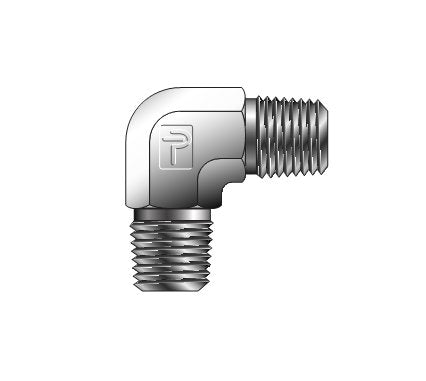

Parker Male Elbow ME Pipe Fitting
Parker Male Elbow ME Pipe Fitting
SKU:FIT-c6e053
Parker Male Elbow ME: Precision-engineered for leak-free connections in process, power, industrial applications. Compliant with ANSI standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Elbow ME Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME is purposefully crafted for precision control and instrumentation applications, ensuring leak-free connections essential in process, power, and industrial settings. Engineered to meet the highest quality standards, this male elbow excels in versatility with a broad range of sizes, materials, and configurations. Its precision machined design, compliant with ANSI standards, offers reliability and durability in demanding environments. From the Parker Instrumentation division, these fittings boast exceptional performance and strength, making them a prime choice for institutional and industrial procurement needs.
Product Specifications

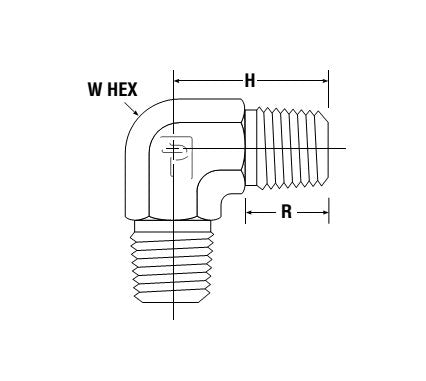

Dimensions Connection Type
NPT to NPT
Dimensions H
.66 in
Dimensions Npt Thread Male
1/16
Dimensions R
.38 in
Dimensions Working Pressure Brass
5500 psi
Dimensions Working Pressure Stainless Steel
9500 psi
Dimensions Working Pressure Steel
10100 psi
Dimensions W Hex
3/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
