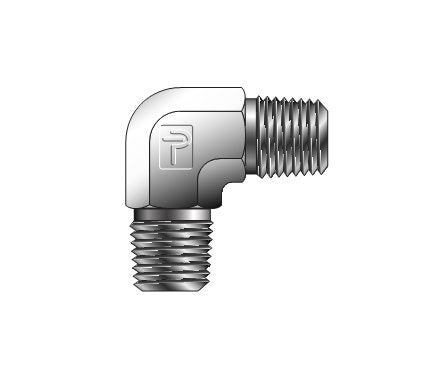

Parker Male Elbow ME Pipe Fitting
Parker Male Elbow ME Pipe Fitting
SKU:FIT-30049b
Precision-engineered Parker Male Elbow ME Pipe Fitting for leak-free connections in process, power, and instrumentation applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Elbow ME Pipe Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME Pipe Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME Pipe Fitting is an essential component for leak-free connections in process, power, instrumentation, and industrial applications. Precision machined from durable materials such as steel and brass, these fittings are engineered to meet the highest quality standards. With working pressures ranging from 2700 to 4900 psi, these fittings are reliable and efficient for various applications. Packaged in sealed, clear plastic shrink wrapped boxes, each fitting ensures cleanliness and protection. Designed to exceed ANSI standards, these fittings are the ideal choice for your instrumentation needs.
Product Specifications

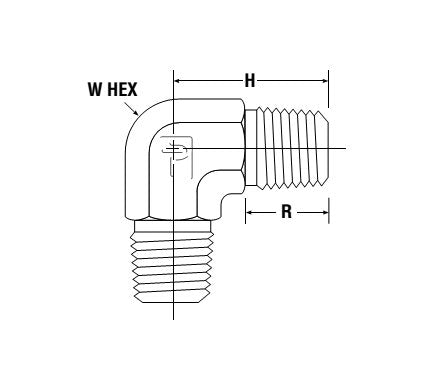

Dimensions Connection Type
NPT to NPT
Dimensions H
1.97 in
Dimensions Npt Thread Male
1
Dimensions R
.94 in
Dimensions Working Pressure Brass
2700 psi
Dimensions Working Pressure Stainless Steel
4600 psi
Dimensions Working Pressure Steel
4900 psi
Dimensions W Hex
1 5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
