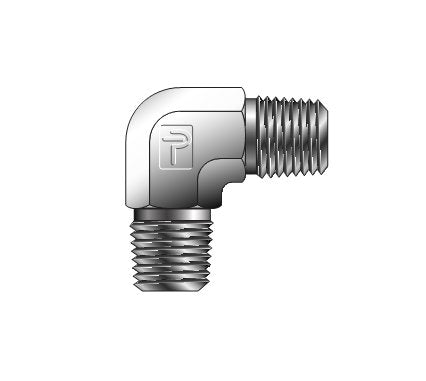

Parker Male Elbow ME Pipe Fitting NPT to NPT
Parker Male Elbow ME Pipe Fitting NPT to NPT
SKU:FIT-1138b3
Reliable Parker Male Elbow ME Pipe Fitting for leak-free connections in instrumentation and industrial applications. Meets high-quality standards with up to 7600 psi working pressure.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Elbow ME Pipe Fitting NPT to NPT
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Elbow ME Pipe Fitting NPT to NPT
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Elbow ME Pipe Fitting is a precision-engineered component designed for leak-free connections in process, power, instrumentation, and industrial applications. Crafted from high-quality materials such as steel, brass, and stainless steel, this fitting guarantees durability and reliability. With working pressures of up to 7600 psi, it meets stringent industry standards for performance and safety. Packaged in sealed, clear plastic shrink-wrapped boxes, these fittings ensure cleanliness and integrity. From its precise machining to exceeding ANSI requirements, the Parker Male Elbow ME Pipe Fitting is a top choice for instrumentation connections.
Product Specifications

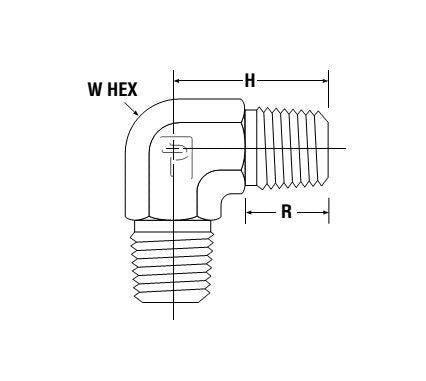

Dimensions Connection Type
NPT to NPT
Dimensions H
1.22 in
Dimensions Npt Thread Male
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psi
Dimensions Working Pressure Stainless Steel
7200 psi
Dimensions Working Pressure Steel
7600 psi
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
