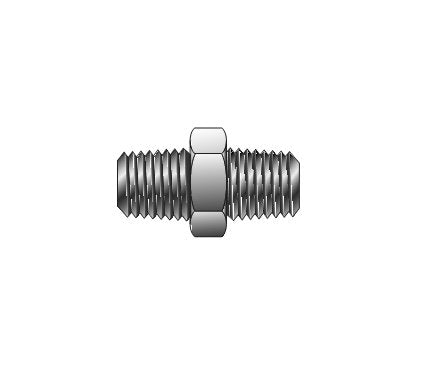

Parker Male Hex Nipple Adapter NPT to BSP Taper
Parker Male Hex Nipple Adapter NPT to BSP Taper
SKU:FIT-bfb169
Achieve leak-free NPT to BSPT connections with Parker's premium Male Hex Nipple Adapter. High-quality stainless steel and brass construction for up to 9100 psi working pressure. Trust Parker's precision and reliability!
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Hex Nipple Adapter NPT to BSP Taper
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple Adapter NPT to BSP Taper
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple Adapter offers superior quality and precision for seamless connections between components utilizing NPT and BSP threads. Crafted to Parker's stringent ISO Conversion Fittings standards, this adapter ensures a reliable and leak-free interface, suitable for demanding industrial applications. Built to withstand high pressures up to 9100 psi in stainless steel and 5600 psi in brass, it excels in durability and performance. Transition smoothly between NPT and BSPT fittings with confidence, backed by Parker's renowned reputation for excellence.
Product Specifications

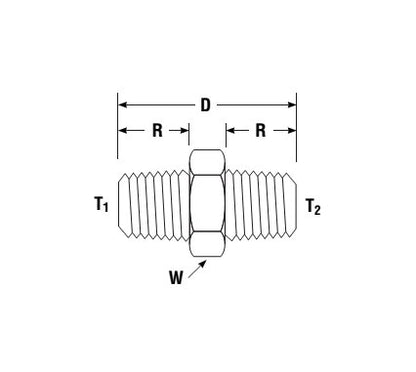

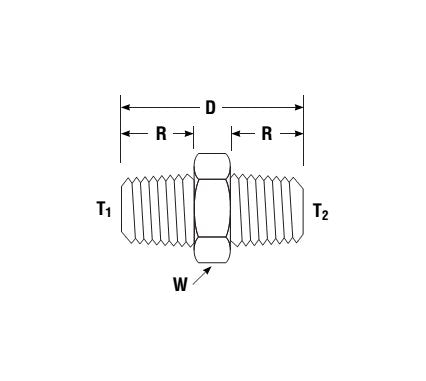

Dimensions Bspt Thread T2
1/8-28
Dimensions Connection Type
MNPT to BSPT
Dimensions D
1.06 in
Dimensions Npt Thread T1
1/8-27
Dimensions R
.38 in
Dimensions Working Pressure Brass
5600 psi | 390 bar
Dimensions Working Pressure Stainless Steel
9100 psi | 630 bar
Dimensions W Hex
7/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
