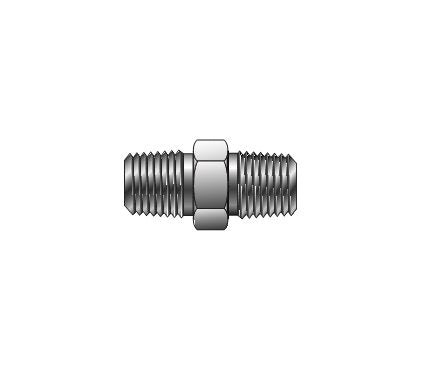

Parker Male Hex Nipple MHN - 1 1/2"
Parker Male Hex Nipple MHN - 1 1/2"
SKU:FIT-5c8f1d
Precision-engineered Parker Male Hex Nipple MHN for leak-free connections in instrumentation applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Hex Nipple MHN - 1 1/2"
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple MHN - 1 1/2"
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple MHN is precision-engineered for leak-free connections in process, power, and instrumentation applications. Made from high-quality materials like steel and brass, these fittings exceed industry standards in working pressure, with brass handling up to 1800 psig and stainless steel up to 2900 psig. Designed for precision and reliability, these fittings are compliant with ANSI B31.1 and B31.3 standards, ensuring optimal performance and seamless installation for institutional and industrial use.
Product Specifications

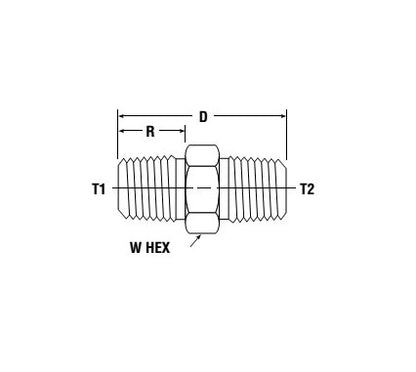

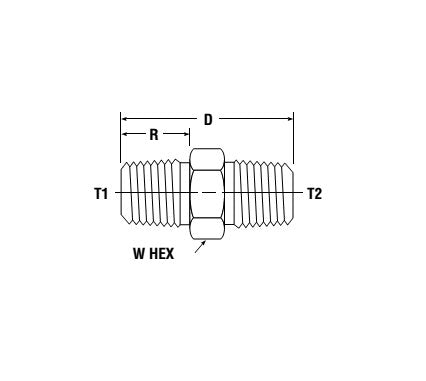

Dimensions Connection Type
MNPT to MNPT
Dimensions D
2.61 in
Dimensions Npt Thread Male T1
1 1/2
Dimensions Npt Thread Male T2
1 1/2
Dimensions R
1.00 in
Dimensions Working Pressure Brass
1800 psig
Dimensions Working Pressure Stainless Steel
2900 psig
Dimensions Working Pressure Steel
3100 psig
Dimensions W Hex
2 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
