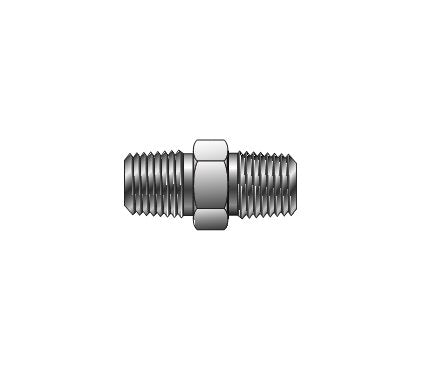

Parker Male Hex Nipple MHN, MNPT to MNPT, 3/8''
Parker Male Hex Nipple MHN, MNPT to MNPT, 3/8''
SKU:FIT-d986d9
Reliable Parker Male Hex Nipple MHN for precise instrumentation connections in industrial applications. Meets ANSI standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Parker Male Hex Nipple MHN, MNPT to MNPT, 3/8''
$25.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple MHN, MNPT to MNPT, 3/8''
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple MHN provides leak-free connections essential for process, power, instrumentation, and industrial applications. Precision machined from high-quality materials, this fitting meets strict quality standards. Engineered for instrumentation applications, it ensures reliability and durability. Packaged in sealed, clear plastic boxes, it maintains cleanliness. With working pressures up to 7600 psig and compliance with ANSI B31.1 and B31.3, this fitting offers superior performance and longevity.

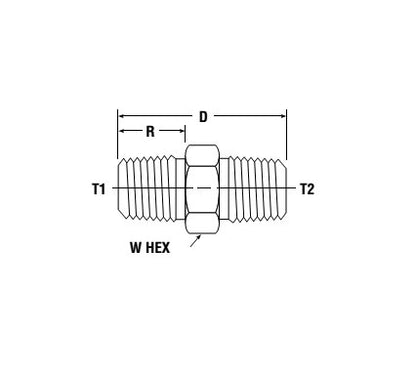

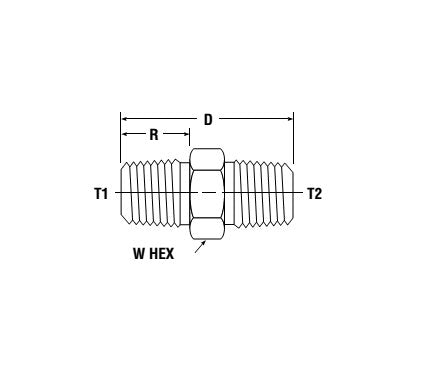

Product Specifications
Dimensions Connection Type
MNPT to MNPT
Dimensions D
1.45 in
Dimensions Npt Thread Male T1
3/8
Dimensions Npt Thread Male T2
3/8
Dimensions R
.56 in
Dimensions Working Pressure Brass
4000 psig
Dimensions Working Pressure Stainless Steel
7200 psig
Dimensions Working Pressure Steel
7600 psig
Dimensions W Hex
3/4 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
