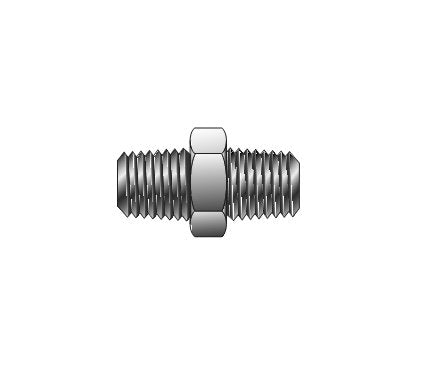

Parker Male Hex Nipple NPT to BSP Taper Fitting
Parker Male Hex Nipple NPT to BSP Taper Fitting
SKU:FIT-29bb6c
Premium Parker Male Hex Nipple NPT to BSP Taper Fitting for leak-free connections between NPT and ISO Thread components.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Hex Nipple NPT to BSP Taper Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple NPT to BSP Taper Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple NPT to BSP Taper Fitting is a precision-engineered component that meets the highest quality standards for compatibility between NPT and ISO Thread configurations. Designed for seamless connections, this fitting ensures leak-free joints and reliable performance. Crafted from durable stainless steel or brass, it offers exceptional working pressures of up to 6600 psi, making it ideal for demanding industrial applications. Trust Parker ISO Conversion Fittings for superior quality and compatibility.
Product Specifications

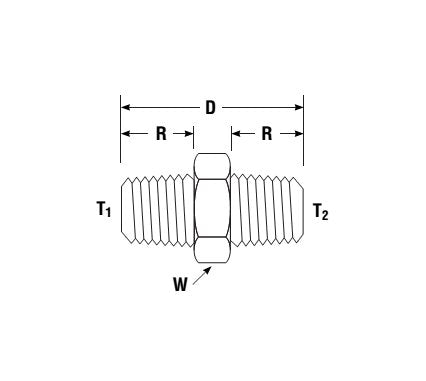

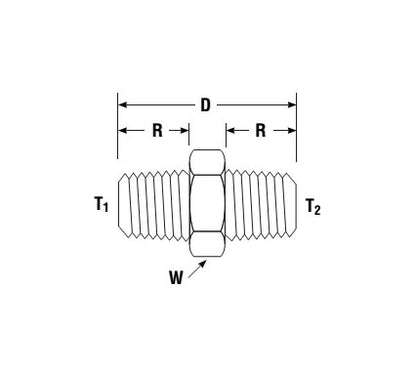

Dimensions Bspt Thread T2
1/2-14
Dimensions Connection Type
MNPT to BSPT
Dimensions D
1.89 in
Dimensions Npt Thread T1
1/2-14
Dimensions R
.75 in
Dimensions Working Pressure Brass
3900 psi | 270 bar
Dimensions Working Pressure Stainless Steel
6600 psi | 460 bar
Dimensions W Hex
7/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
