Parker Male Hex Nipple NPT to BSP Taper Fitting
Parker Male Hex Nipple NPT to BSP Taper Fitting
SKU:FIT-7cc41e
High-quality Parker Male Hex Nipple fitting for NPT to BSP conversions, offers durability and precision. Ideal for industrial applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Hex Nipple NPT to BSP Taper Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple NPT to BSP Taper Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple NPT to BSP Taper Fitting is expertly crafted to facilitate seamless connections between components utilizing NPT and BSP thread configurations. Designed to the highest quality standards, this fitting ensures reliable and leak-free joints. Manufactured from premium stainless steel or brass, it offers exceptional durability and is compatible with a working pressure of up to 4600 psi. Ideal for industrial applications requiring precise thread compatibility and superior performance.
Product Specifications

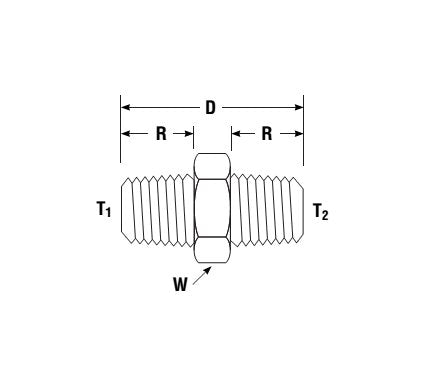

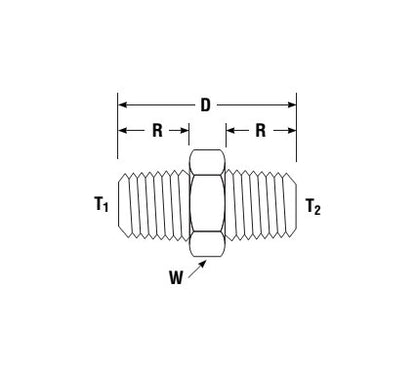

Dimensions Bspt Thread T2
1-11
Dimensions Connection Type
MNPT to BSPT
Dimensions D
2.34 in
Dimensions Npt Thread T1
1-11 1/2
Dimensions R
.94 in
Dimensions Working Pressure Brass
2700 psi | 190 bar
Dimensions Working Pressure Stainless Steel
4600 psi | 320 bar
Dimensions W Hex
1 3/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
