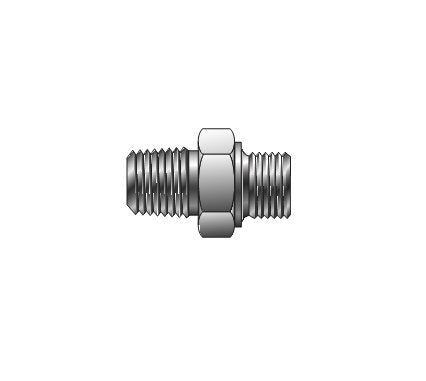

Parker Male Hex Nipple NPT to BSPP Converter Fitting
Parker Male Hex Nipple NPT to BSPP Converter Fitting
SKU:FIT-21bf42
Achieve leak-proof connections with the Parker Male Hex Nipple NPT to BSPP Converter Fitting, designed for high-pressure industrial systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Hex Nipple NPT to BSPP Converter Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple NPT to BSPP Converter Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple NPT to BSPP Converter Fitting is meticulously engineered to facilitate seamless connections between components sporting NPT and ISO Thread types. Crafted from high-grade stainless steel and brass, these ISO Conversion Fittings adhere to stringent quality standards, ensuring reliable performance. With a working pressure of up to 4600 psi, these fittings are designed for durability and longevity, making them ideal for industrial applications where precision and quality are paramount.
Product Specifications

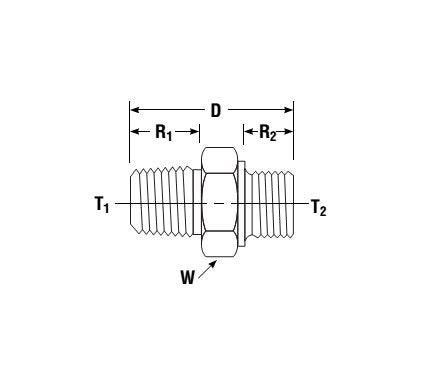

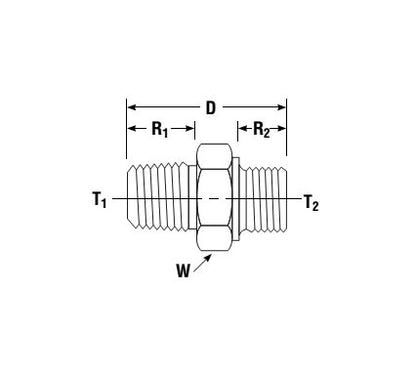

Dimensions Bspp Thread T2
1-11
Dimensions Connection Type
NPT x BSPP
Dimensions D
2.26 in
Dimensions Npt Thread T1
1-11 1/2
Dimensions R1
.94 in
Dimensions R2
.72 in
Dimensions Working Pressure Brass
2600 psi | 180 bar
Dimensions Working Pressure Stainless Steel
4600 psi | 320 bar
Dimensions W Hex
1 5/8 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
