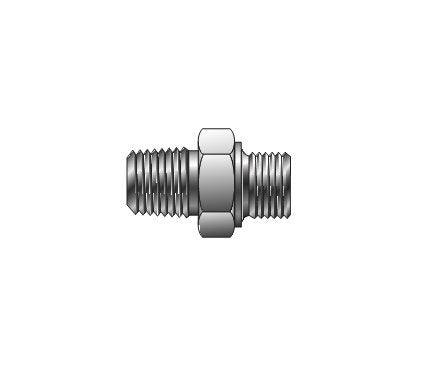

Parker Male Hex Nipple NPT to BSPP Fitting
Parker Male Hex Nipple NPT to BSPP Fitting
SKU:FIT-7b3387
High-quality Parker male hex nipple fitting for NPT to BSPP connections. Durable stainless steel or brass construction with leak-proof bonded seal for precise installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Parker Male Hex Nipple NPT to BSPP Fitting
$24.99
Quantity: 1
Claim Your Seller Account
Parker Male Hex Nipple NPT to BSPP Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Hex Nipple NPT to BSPP Fitting is engineered to the highest quality standards, facilitating seamless connections between NPT and ISO Thread configurations. Crafted from durable stainless steel or brass, this fitting ensures reliable performance under high pressures. The design features a bonded seal for the BSPP end, enhancing leak-proof connections. With working pressures of up to 9100 psi, this fitting is a versatile solution for various applications, meeting stringent industrial requirements.
Product Specifications

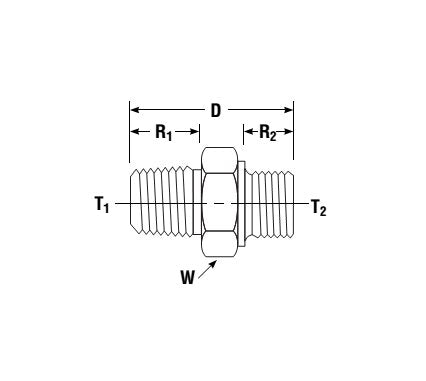

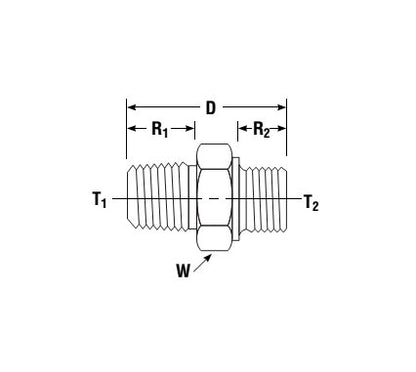

Dimensions Bspp Thread T2
1/8-28
Dimensions Connection Type
NPT x BSPP
Dimensions D
1.07 in
Dimensions Npt Thread T1
1/8-27
Dimensions R1
.38 in
Dimensions R2
.28 in
Dimensions Working Pressure Brass
5000 psi | 340 bar
Dimensions Working Pressure Stainless Steel
9100 psi | 630 bar
Dimensions W Hex
9/16 in
Specifications Design
Parker ISO Conversion Fittings are designed to the most commonly used ISO thread forms. These thread forms are used where pressure tight joints are either made on threads utilizing a thread sealant or where pressure tight joints utilize a peripheral seal on the face of the mating component.
Specifications Material
Parker ISO Conversion Fittings are standard in stainless steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
