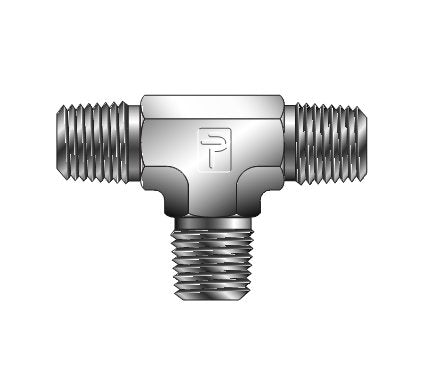

Parker Male Tee Instrumentation Pipe Fitting
Parker Male Tee Instrumentation Pipe Fitting
SKU:FIT-5b6833
Precision-engineered Male Tee Instrumentation Pipe Fitting for leak-free, high-pressure industrial applications. Made from premium materials for durability and performance.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Parker Male Tee Instrumentation Pipe Fitting
$34.99
Quantity: 1
Claim Your Seller Account
Parker Male Tee Instrumentation Pipe Fitting
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Tee Instrumentation Pipe Fitting is engineered for precision and reliability in process, power, and instrumentation applications. Manufactured to the highest quality standards, this leak-free fitting is ideal for industrial use. Made from premium materials such as steel and brass, with special order options available, it provides exceptional performance and durability. With working pressures that exceed industry standards, this fitting is designed to meet the stringent requirements of instrument connections between pipe and tube sizes.
Product Specifications

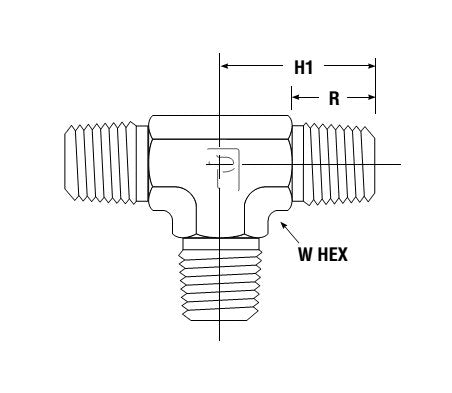

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
1.09 in
Dimensions Npt Thread Male
1/4
Dimensions R
.56 in
Dimensions Working Pressure Brass
4100 psig
Dimensions Working Pressure Stainless Steel
7500 psig
Dimensions Working Pressure Steel
8000 psig
Dimensions W Hex
9/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
