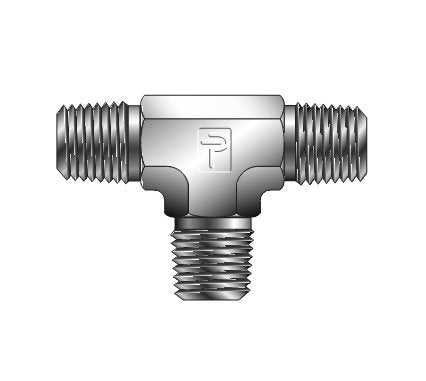

Parker Male Tee Instrumentation Pipe Fitting
Parker Male Tee Instrumentation Pipe Fitting
SKU:FIT-3e0cdc
Highly reliable Parker Male Tee MT for precise instrumentation connections, delivering durability and performance under pressure.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Parker Male Tee Instrumentation Pipe Fitting
$42.99
Quantity: 1
Claim Your Seller Account
Parker Male Tee Instrumentation Pipe Fitting
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Tee MT is a precision-engineered instrumentation pipe fitting designed for leak-free connections in process, power, instrumentation, and industrial applications. Crafted from high-quality materials, this fitting offers unparalleled reliability and performance. Manufactured in Huntsville, Alabama, under strict quality control programs, the Parker Male Tee MT meets stringent industry standards for durability and precision. With working pressures up to 6200 psig, this fitting is ideal for critical instrumentation connections.
Product Specifications

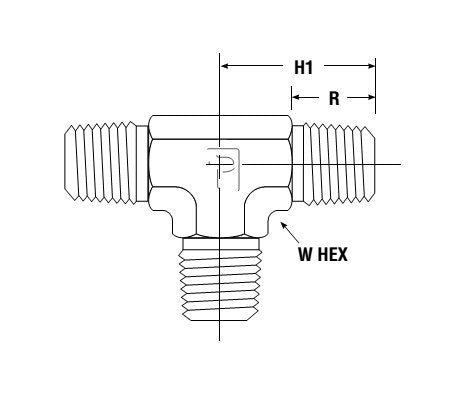

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
1.47 in
Dimensions Npt Thread Male
1/2
Dimensions R
.76 in
Dimensions Working Pressure Brass
3100 psig
Dimensions Working Pressure Stainless Steel
5800 psig
Dimensions Working Pressure Steel
6200 psig
Dimensions W Hex
7/8 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
