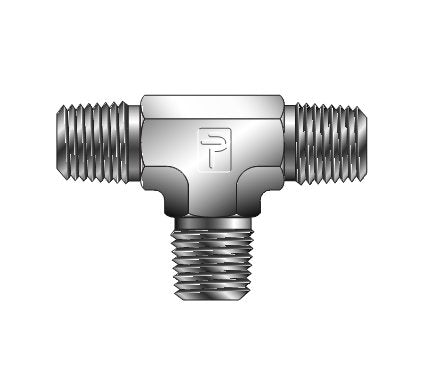

The Parker Male Tee Instrumentation Pipe Fittings from the Instrumentation Products Division of Parker Hannifin provide leak-free connections ideal for process, power, instrumentation, and industrial applications. Engineered to the highest quality standards, these fittings come in various sizes and materials, offering precision-machined construction for enhanced durability and performance. With working pressures up to 4900 psig, these fittings are designed for reliability and longevity in demanding environments.
Product Specifications

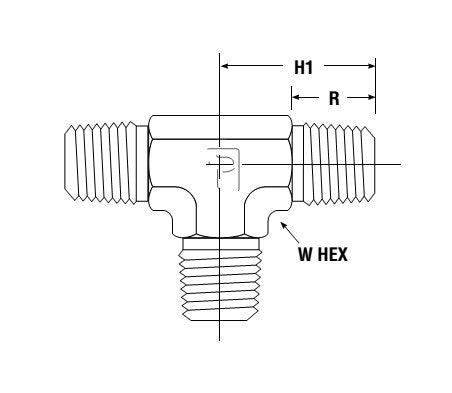

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
1.97 in
Dimensions Npt Thread Male
1
Dimensions R
.94 in
Dimensions Working Pressure Brass
2700 psig
Dimensions Working Pressure Stainless Steel
4600 psig
Dimensions Working Pressure Steel
4900 psig
Dimensions W Hex
1 5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
