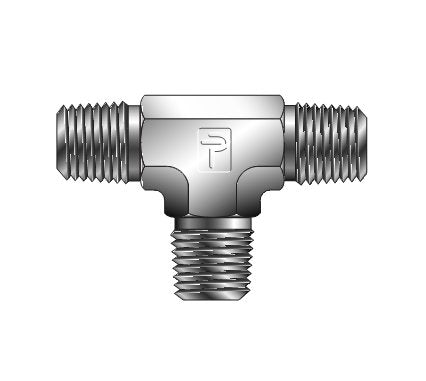

Parker Male Tee MT Instrument Pipe Fitting
Parker Male Tee MT Instrument Pipe Fitting
SKU:FIT-323943
Precision-crafted Parker Male Tee MT fitting for leak-free process control and instrumentation applications. Exceeds ANSI standards.
Regular price
$25.99
Regular price
Sale price
$25.99
Unit price
per
Initiate Order
Parker Male Tee MT Instrument Pipe Fitting
$25.99
Quantity: 1
Claim Your Seller Account
Parker Male Tee MT Instrument Pipe Fitting
$25.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Tee MT Instrumentation Pipe Fitting is engineered to deliver leak-free connections essential for process control and instrumentation applications in industries ranging from power to general industrial settings. Manufactured to the highest quality standards, this fitting boasts precision machined construction from forgings and bar stocks. With a working pressure range of up to 9700 psig (steel), it offers exceptional reliability and durability. Packaged in sealed, clear plastic shrink-wrapped boxes, it ensures cleanliness and protection. Ideal for applications requiring adherence to ANSI standards, this fitting exceeds industry requirements for quality and performance.
Product Specifications

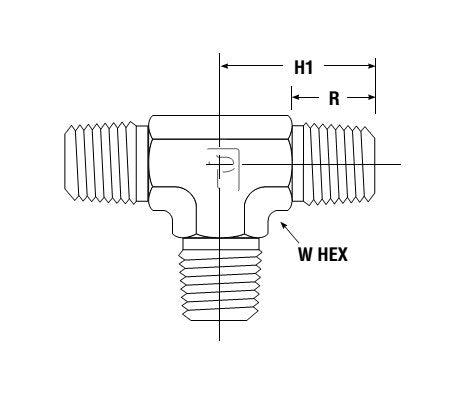

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
.76 in
Dimensions Npt Thread Male
1/8
Dimensions R
.38 in
Dimensions Working Pressure Brass
5000 psig
Dimensions Working Pressure Stainless Steel
9100 psig
Dimensions Working Pressure Steel
9700 psig
Dimensions W Hex
7/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
