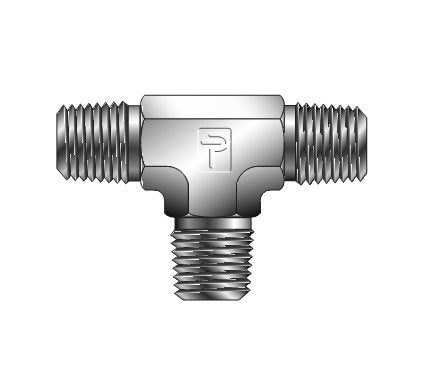

Parker Male Tee MT Instrumentation Pipe Fitting
Parker Male Tee MT Instrumentation Pipe Fitting
SKU:FIT-26994e
Precision-crafted Parker Male Tee MT for leak-free connections in process, power, and instrumentation applications. Available in steel, brass, and stainless steel with industry-compliant working pressures.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Parker Male Tee MT Instrumentation Pipe Fitting
$29.99
Quantity: 1
Claim Your Seller Account
Parker Male Tee MT Instrumentation Pipe Fitting
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker Male Tee MT Instrumentation Pipe Fitting is expertly crafted for precision and reliability in process, power, and instrumentation applications. Manufactured to the highest quality standards, this fitting guarantees leak-free connections and uncompromised performance. With options in steel, brass, and stainless steel materials, and working pressures meeting industry regulations, this male tee ensures seamless integration into various systems for maximum efficiency.
Product Specifications

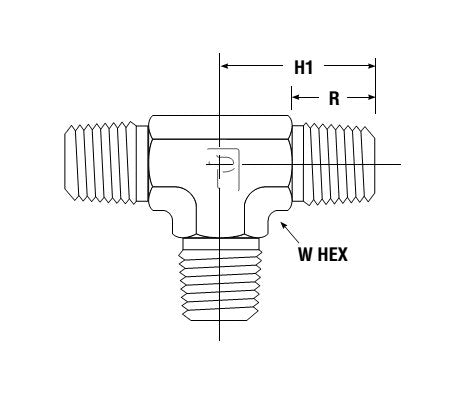

Dimensions Connection Type
MNPT x MNPT x MNPT
Dimensions H1
.72 in
Dimensions Npt Thread Male
1/16
Dimensions R
.38 in
Dimensions Working Pressure Brass
5500 psig
Dimensions Working Pressure Stainless Steel
9500 psig
Dimensions Working Pressure Steel
10100 psig
Dimensions W Hex
5/16 in
Specifications Features
Quality engineered for instrumentation applicationsPackaged in sealed, clear plastic shrink wrapped boxes for cleanlinessWorking pressures calculated in accordance with Power Piping Code ANSI B31.1 and Refiner Piping Code ANSI B31.3.All pipe threads are National Pipe Taper (NPT) and exceed the requirements of ANSI B1.20.1.Rolled male threads for extra strengthStraight bodies machined from applicable ASTM bar stock specificationsShapes machined from close grain forgingsSize ranges from 1/16" through 2" NPTMaterials - 316 Stainless Steel, Brass and Steel. (Other materials by special order)All exposed threads protected to prevent damage
Specifications Features And Technical Data
Parker Instrument Pipe Fittings are precision machined from forgings for elbows, tees and crosses and from bar stock for straight connectors. They are designed to be used for process control and instrumentation connections between pipe sizes and tube sizes.
Specifications Material
Parker Pipe Fittings are standard in steel and brass. Other materials may be special ordered within the Parker Quick Response Department. Straight fittings are manufactured from applicable ASTM bar stock specifications shaped fittings are manufactured from close grain forgings.
