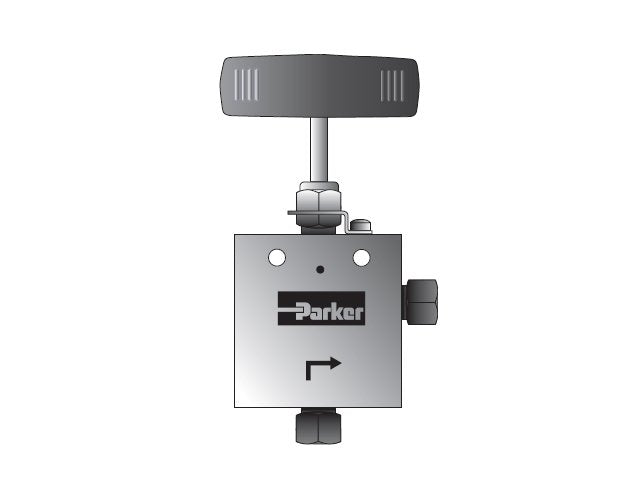

Parker MAN Series 2-Way Angle Valve with MPI™ Connection
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
SKU:VAL-ebc6af
Precision-engineered Parker MAN Series 2-Way Angle Valve for high-pressure liquid or gas control applications. Features Double Ferrule MPI™ Connection, robust materials, and versatile design options.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
$249.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 2-Way Angle Valve is a precision-engineered solution designed for multi-turn control of liquid or gas media up to 15,000 psi pressure. Featuring a Double Ferrule MPI™ tube connection, this valve ensures fast, reliable performance in various applications. With options for regulating or shutoff capabilities, a wide range of MPI™ tube sizes, and superior materials like CW 316 Stainless Steel or 2507 Annealed Super Duplex, this valve offers exceptional durability, temperature range from -423°F to 1000°F, and resistance to corrosive environments. Additional features include non-rotating stem design, metal-to-metal seating, and optional coatings for severe service conditions.
Product Specifications

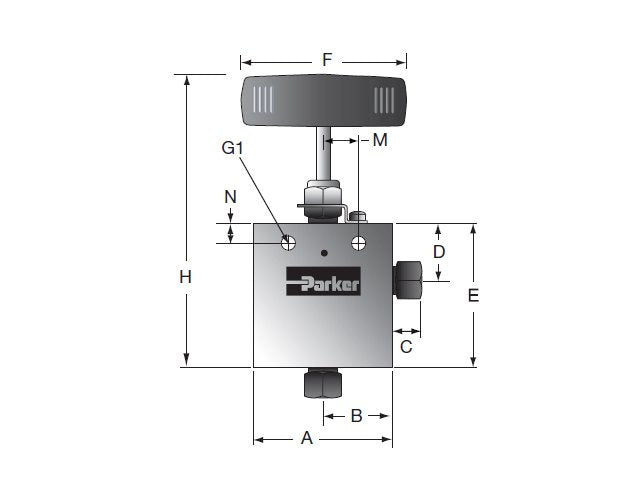

Dimensions A
4.12 in
Dimensions B
2.06 in
Dimensions Block Thickness
1.75 in
Dimensions B Stem Repair Kit
RSM1207
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D
2.25 in
Dimensions E
4.25 in
Dimensions F
10.35 in
Dimensions G1
.44 in
Dimensions H
7.42 in
Dimensions M
.88 in
Dimensions N
.62 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
4.2
Dimensions R Stem Repair Kit
R15SM1208
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
