Parker MAN Series 2-Way Angle Valve with MPI™ Connection
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
SKU:VAL-96746a
Precision 2-Way Angle Valve with MPI™ Connection, 15,000 psi, Non-Rotating Stem, Bubble-Tight Shut-Off, Wide Temperature Range. Durable, Reliable, Efficient.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
$129.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve with MPI™ Connection
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

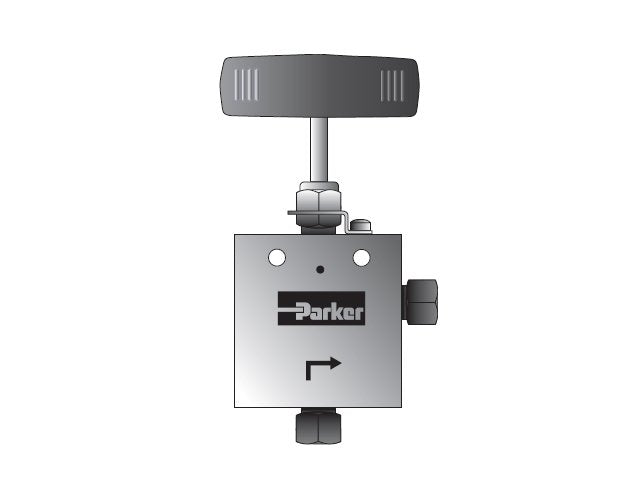

The Parker MAN Series 2-Way Angle Valve is a precision-engineered needle valve designed for multi-turn control of liquid or gas media with superior regulation and shutoff capabilities at pressures up to 15,000 psi. Featuring a Double Ferrule connection for quick and reliable performance, this valve is compatible with MPI™ tube sizes from 1/4" to 1". Its robust construction, including CW 316 Stainless Steel or optional 2507 Annealed Super Duplex material, ensures durability and longevity even in harsh operating conditions. With non-rotating stem design, metal-to-metal seating for bubble-tight shut-off, and a wide temperature range from -423°F to 1000°F, the Parker MAN Series Valve is a trusted choice for demanding industrial applications.

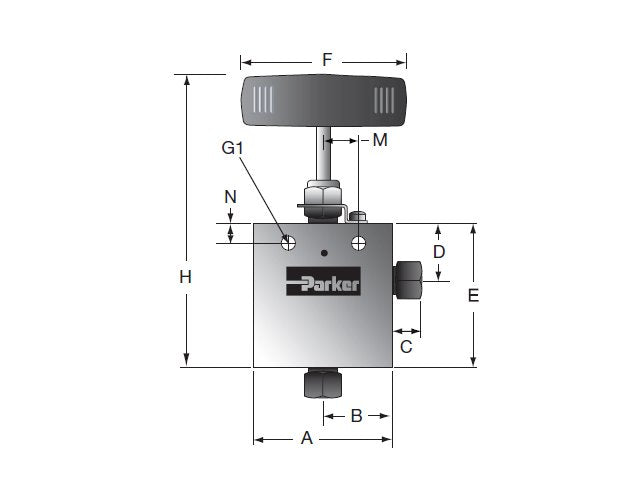

Product Specifications
Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
RSM907
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
1.75 in
Dimensions E
3.58 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
6.60 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.312 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
2.0
Dimensions R Stem Repair Kit
RSM908
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
