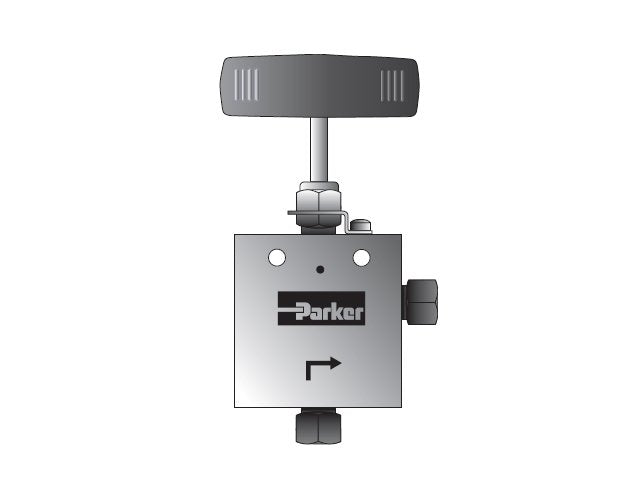

Parker MAN Series 2-Way Angle Valve with MPI™ Connections
Parker MAN Series 2-Way Angle Valve with MPI™ Connections
SKU:VAL-5f2b6f
Precisely control liquids or gases with the Parker MAN Series 2-Way Angle Valve. With a 15,000 psi capacity and durable stainless steel construction, these valves ensure reliable performance for industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Angle Valve with MPI™ Connections
$249.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Angle Valve with MPI™ Connections
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 2-Way Angle Valve is expertly designed for precise control of liquids or gases at pressures up to 15,000 psi. Featuring a Double Ferrule connection for secure performance, these valves cater to MPI™ tube sizes from 1/4" to 1". Constructed with CW 316 Stainless Steel material as standard, they offer a rising stem/barstock body design with non-rotating stem to prevent galling. Additionally, the metal-to-metal seating ensures bubble-tight shut-off, exceptional durability, and corrosion resistance, making them ideal for rigorous industrial applications. With a temperature range from -423°F to 1000°F, these valves provide unmatched performance in various operating conditions.
Product Specifications

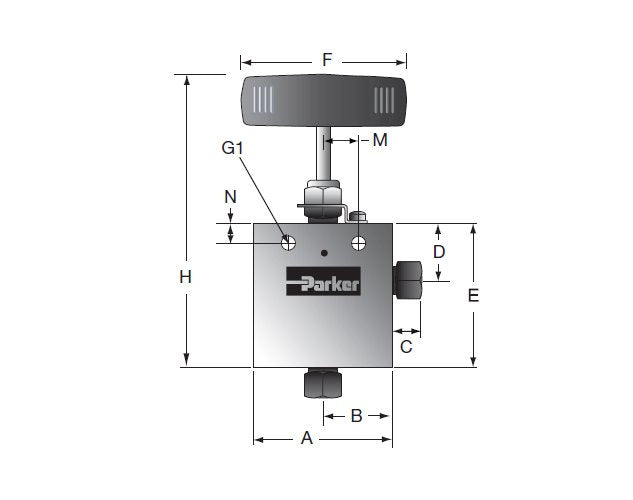

Dimensions A
4.75 in
Dimensions B
2.38 in
Dimensions Block Thickness
2.00 in
Dimensions B Stem Repair Kit
RSM1607
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D
2.81 in
Dimensions E
5.44 in
Dimensions F
10.35 in
Dimensions G1
.56 in
Dimensions H
9.43 in
Dimensions M
1.25 in
Dimensions N
1.13 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
7.8
Dimensions R Stem Repair Kit
R15SM1608
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
