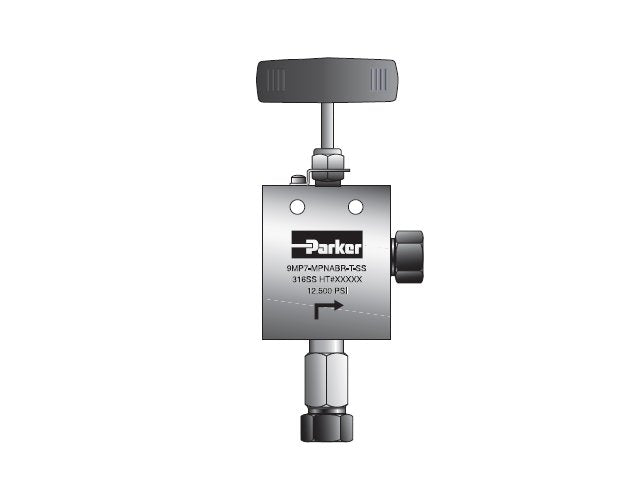

Precision meets durability in Parker MAN Series 2-Way Needle Valves for fluid control up to 15,000 psi.
Regular price
$229.99
Regular price
Sale price
$229.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Needle Valves with MPI™ Connections
$229.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Needle Valves with MPI™ Connections
$229.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ideal for precise liquid or gas media control, Parker MAN Series needle valves offer a robust design with a pressure rating of 15,000 psi. Featuring a double ferrule MPI™ connection, these valves ensure secure performance in diverse services. With options for regulating flow and replaceable seats, they provide flexibility for various applications. Built with high-quality materials, non-rotating stem design, and advanced sealing technology, these valves deliver exceptional durability, temperature resistance, and corrosion protection. The Parker MPI™ connection further enhances reliability and ease of assembly, making these valves a top choice for demanding industrial environments.

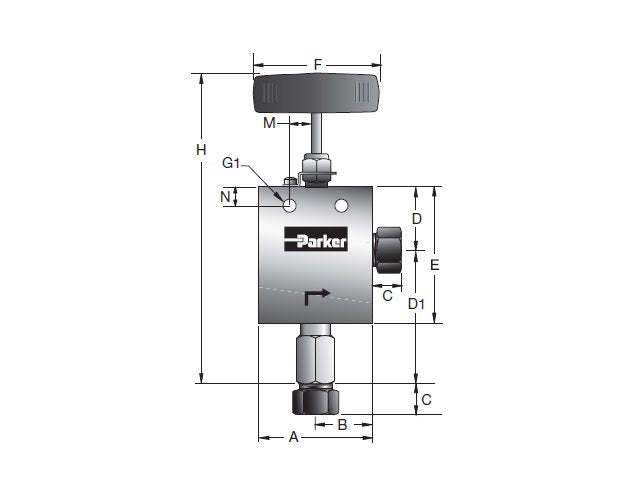

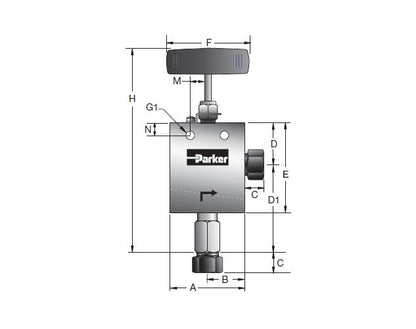

Product Specifications
Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM4872
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.19 in
Dimensions D1
2.32 in
Dimensions E
2.25 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.94 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.47
Dimensions R Stem Repair Kit
RSM4882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
