Parker MAN Series 2-Way Needle Valves with MPI Connections
Parker MAN Series 2-Way Needle Valves with MPI Connections
SKU:VAL-f53628
Ensure precise liquid/gas media control with Parker MAN Series 2-Way Needle Valves for up to 15,000 psi pressure. Superior performance and durability in extreme conditions.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Needle Valves with MPI Connections
$129.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Needle Valves with MPI Connections
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

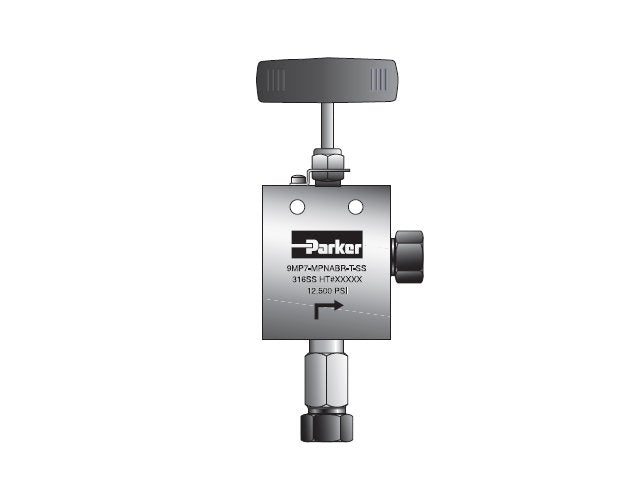

The Parker MAN Series 2-Way Replaceable Seat Valves offer precise control of liquid or gas media at pressures up to 15,000 psi, meeting stringent industrial standards. Featuring a Double Ferrule connection for fast, reliable performance, these valves come in various body patterns for versatile control options. Built with CW 316 Stainless Steel as standard, they ensure bubble-tight shut-off, extended durability, and excellent corrosion resistance. With options like replaceable seats, N-Dura Stem and Seat Coating, and Parker MPI™ Connections, these valves deliver high performance and reliability in demanding applications, from -423°F to 1000°F.

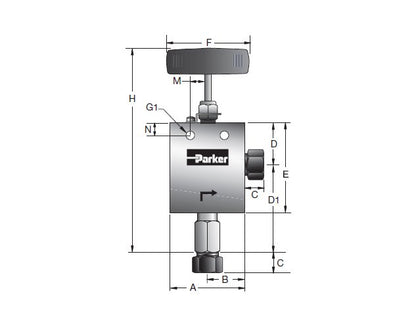

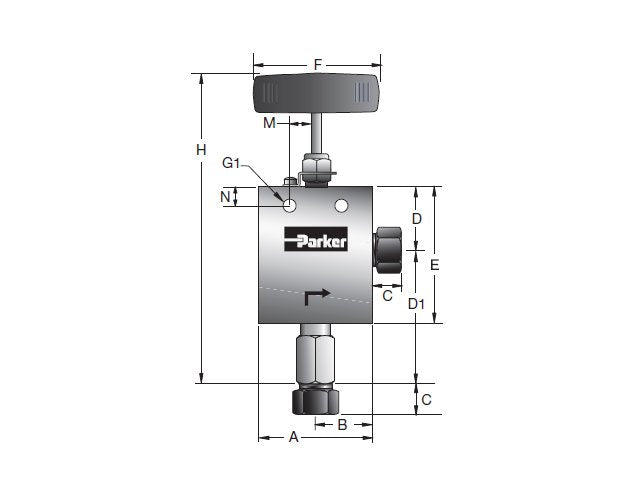

Product Specifications
Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
R20SM9872
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
1.63 in
Dimensions D1
3.18 in
Dimensions E
3.12 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
7.80 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.312 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
2.0
Dimensions R Stem Repair Kit
R20SM9882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
