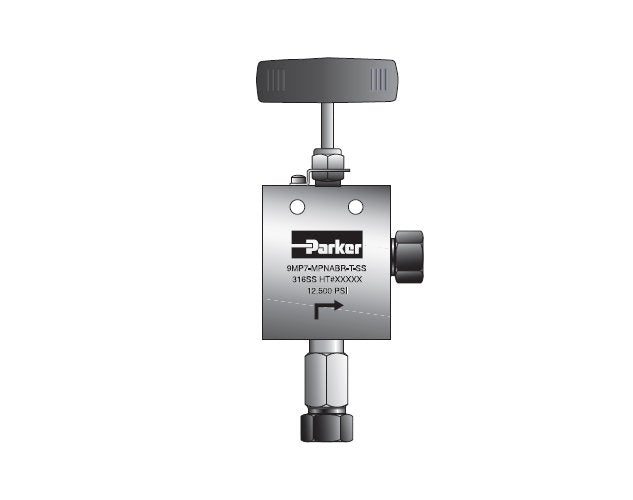

Parker MAN Series 2-Way Replaceable Seat Valves - High Pressure MPI™ Tube Valves
Parker MAN Series 2-Way Replaceable Seat Valves - High Pressure MPI™ Tube Valves
SKU:VAL-16af54
Rugged Parker MAN Series 2-Way Replaceable Seat Valves for precision control of high-pressure media. Durable design for versatile industrial use.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Replaceable Seat Valves - High Pressure MPI™ Tube Valves
$299.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Replaceable Seat Valves - High Pressure MPI™ Tube Valves
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your infrastructure with Parker MAN Series 2-Way Replaceable Seat Valves, designed for precise control of high-pressure liquid or gas media up to 15,000 psi. These valves feature a Double Ferrule connection for secure and leak-free performance, compatible with MPI™ tubes from 1/4" to 1". With a robust design incorporating Rising Stem technology, non-rotating stem, and metal-to-metal seating, they ensure reliable bubble-tight shut-off and durability for diverse industrial applications. Benefit from a wide temperature range, PTFE packing for stem sealing, and options like N-Dura Stem Coating for severe service, meeting rigorous industry standards for performance and longevity.

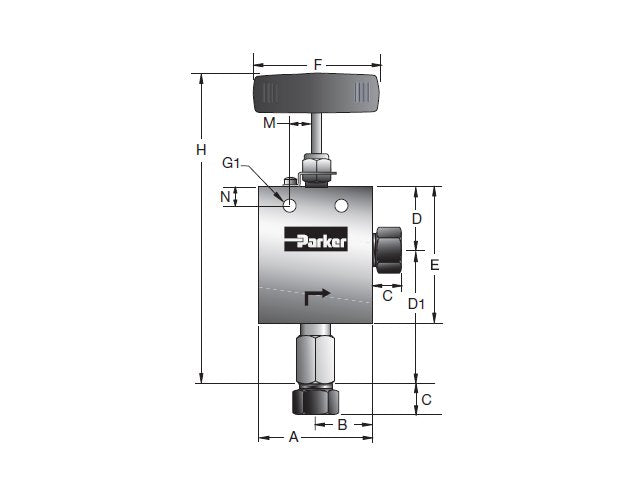

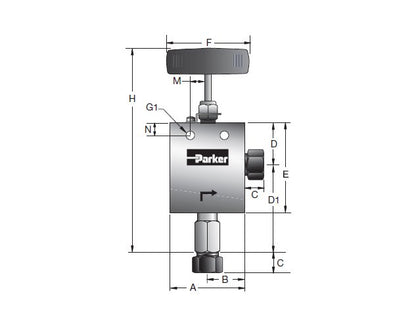

Product Specifications
Dimensions A
4.12 in
Dimensions B
2.06 in
Dimensions Block Thickness
1.75 in
Dimensions B Stem Repair Kit
R15SM12872
Dimensions C
.88 in
Dimensions Connection
3/4 MPI™
Dimensions D
2.25 in
Dimensions D1
3.88 in
Dimensions E
4.25 in
Dimensions F
10.35 in
Dimensions G1
.44 in
Dimensions H
9.30 in
Dimensions M
.88 in
Dimensions N
.62 in
Dimensions Orifice
.516 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
4.2
Dimensions R Stem Repair Kit
R15SM12882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
