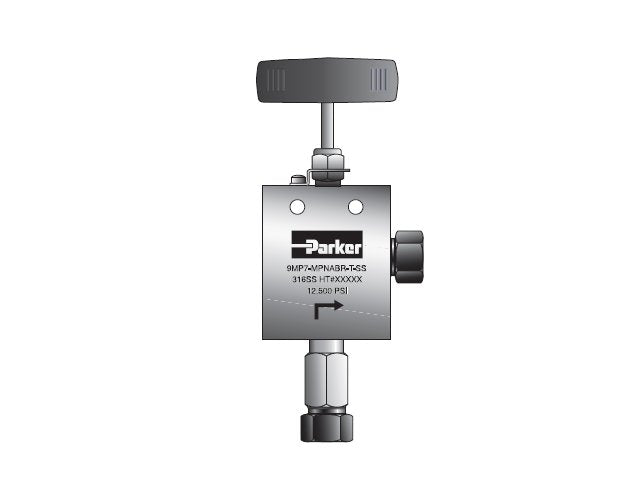

Meet the demanding control needs of liquid or gas media with Parker MAN Series 2-Way Replaceable Seat Valves. Operating at pressures up to 15,000 psi, these needle valves offer precise regulation and shutoff options, ensuring reliable performance in liquid or gas service. With a robust construction and five different body patterns, these valves are designed for MPI™ tube sizes ranging from 1/4" to 1", meeting stringent safety factors. Featuring a Rising stem/barstock body design, non-rotating stem, and metal-to-metal seating, these valves assure bubble-tight shut-off, enhanced durability, and excellent corrosion resistance in harsh environments.
Product Specifications

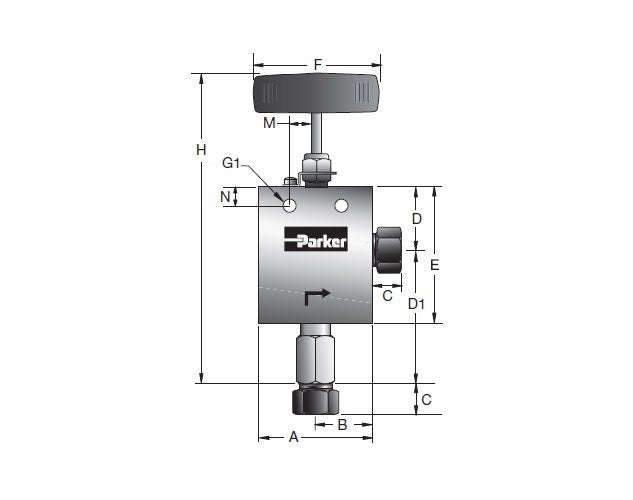

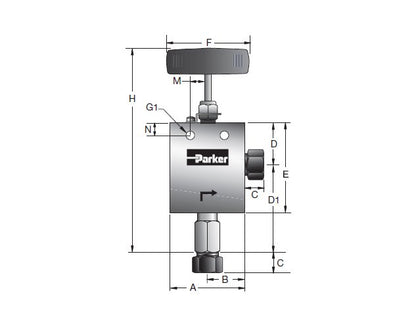

Dimensions A
4.75 in
Dimensions B
2.38 in
Dimensions Block Thickness
2.00 in
Dimensions B Stem Repair Kit
R15SM16872
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D
2.69 in
Dimensions D1
4.94 in
Dimensions E
5.25 in
Dimensions F
10.35 in
Dimensions G1
.56 in
Dimensions H
11.62 in
Dimensions M
1.25 in
Dimensions N
1.13 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
7.8
Dimensions R Stem Repair Kit
R15SM16882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
