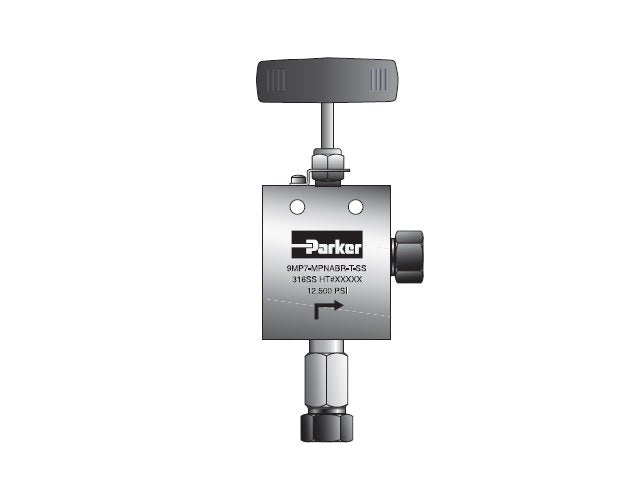

Parker MAN Series 2-Way Replaceable Seat Valves with MPI Connections
Parker MAN Series 2-Way Replaceable Seat Valves with MPI Connections
SKU:VAL-d7703a
Precision control with Parker MAN Series 2-Way Replaceable Seat Valves, designed for liquid or gas media up to 15,000 psi. ASME compliant.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Replaceable Seat Valves with MPI Connections
$149.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Replaceable Seat Valves with MPI Connections
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 2-Way Replaceable Seat Valves feature a double ferrule design with MPI™ tube connections, providing precise multi-turn control for liquid or gas media up to 15,000 psi. Built for reliability, these valves have various body patterns for versatile control options. With a rising stem/barstock body design, non-rotating stem, and metal-to-metal seating, they ensure bubble-tight shut-off, durability, and excellent corrosion resistance. Additionally, the valves feature replaceable seat options, various stem tips, and optional coatings for severe services. Compliant with ASME safety factors, temperature ranges from -423°F to 1000°F, and Parker MPI™ Connection Benefits, these valves are ideal for demanding institutional applications.

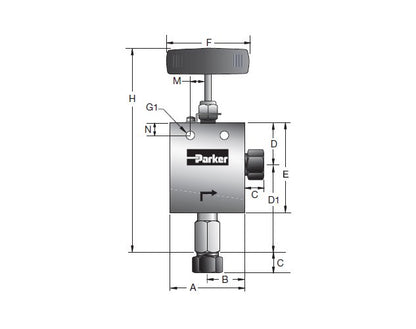

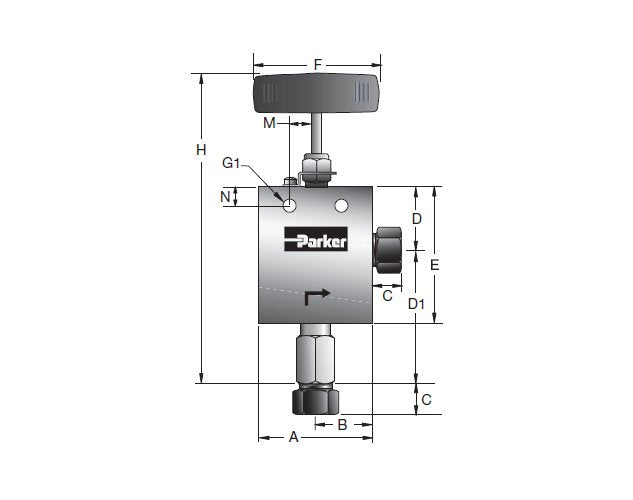

Product Specifications
Dimensions A
2.50 in
Dimensions B
1.25 in
Dimensions Block Thickness
1.00 in
Dimensions B Stem Repair Kit
RSM4872
Dimensions C
.50 in
Dimensions Connection
1/4 MPI™
Dimensions D
1.19 in
Dimensions D1
2.32 in
Dimensions E
2.25 in
Dimensions F
3.00 in
Dimensions G1
.22 in
Dimensions H
5.94 in
Dimensions M
.63 in
Dimensions N
.38 in
Dimensions Orifice
.125 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
0.47
Dimensions R Stem Repair Kit
RSM4882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
