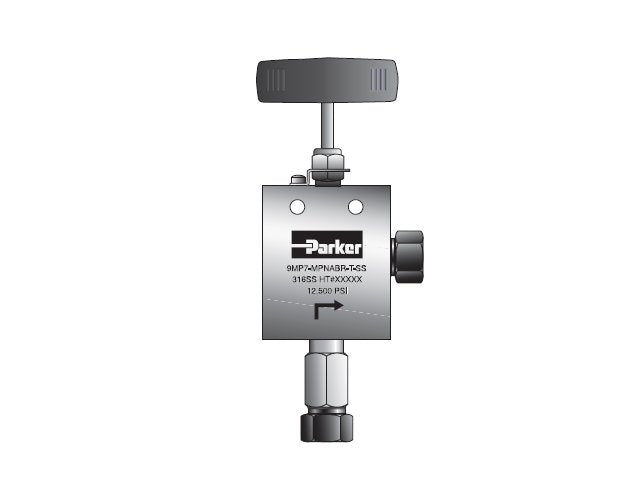

Parker MAN Series 2-Way Seat Valves with MPI™ Tube Connections
Parker MAN Series 2-Way Seat Valves with MPI™ Tube Connections
SKU:VAL-cb88de
Versatile MAN Series Valves for precise liquid or gas flow control, up to 15,000 psi, with bubble-tight shut-off and durable construction.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Parker MAN Series 2-Way Seat Valves with MPI™ Tube Connections
$299.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 2-Way Seat Valves with MPI™ Tube Connections
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 2-Way Replaceable Seat Valves offer precision multi-turn control for liquid or gas media up to 15,000 psi. Featuring a Double Ferrule connection for secure performance, these valves come in five body patterns to suit various control needs. Constructed from CW 316 Stainless Steel, with options for 2507 Super Duplex, these valves ensure bubble-tight shut-off with a non-rotating stem design for enhanced durability. With temperature ranges from -423°F to 1000°F, optional coatings, and various stem tip choices, these valves provide reliable performance in demanding applications.
Product Specifications

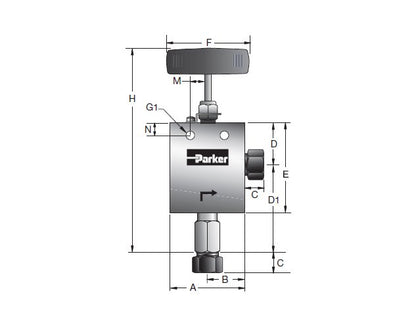

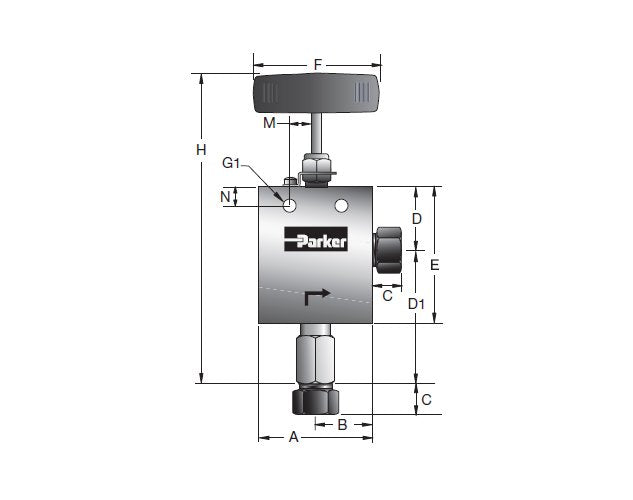

Dimensions A
4.75 in
Dimensions B
2.38 in
Dimensions Block Thickness
2.00 in
Dimensions B Stem Repair Kit
R15SM16872
Dimensions C
1.13 in
Dimensions Connection
1 MPI™
Dimensions D
2.69 in
Dimensions D1
4.94 in
Dimensions E
5.25 in
Dimensions F
10.35 in
Dimensions G1
.56 in
Dimensions H
11.62 in
Dimensions M
1.25 in
Dimensions N
1.13 in
Dimensions Orifice
.688 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
7.8
Dimensions R Stem Repair Kit
R15SM16882
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
