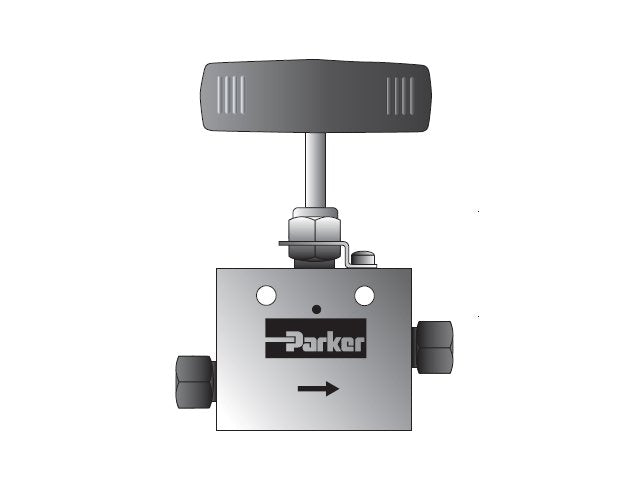

The Parker MAN Series 2-Way Straight Valve is engineered for precise multi-turn control of liquid or gas media at pressures up to 15,000 psi. Featuring a Double Ferrule MPI™ tube connection, this valve ensures fast, leak-free performance. With options for Regulation or Shutoff, it covers MPI™ tube sizes from 1/4" to 1". Built to ASME standards, these valves can operate at pressures up to 15,000 psi. The non-rotating stem design prevents galling, providing long-lasting reliability for critical applications.
Product Specifications

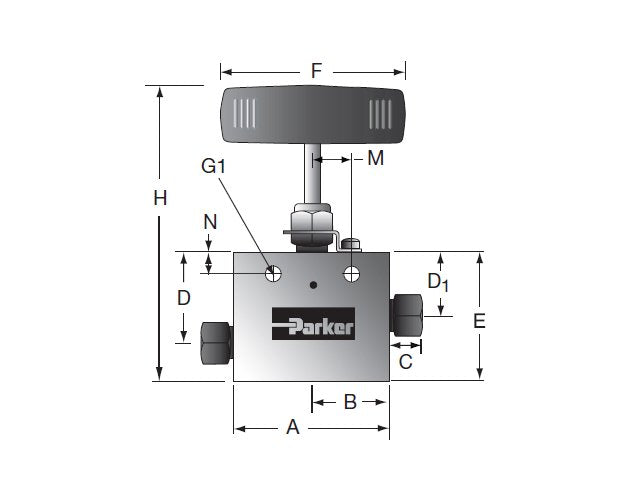

Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
RSM907
Dimensions C
.75 in
Dimensions Connection
9/16 MPI™
Dimensions D
2.38 in
Dimensions D1
1.75 in
Dimensions E
3.00 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
6.00 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.359 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
1.75
Dimensions R Stem Repair Kit
R15SM908
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
