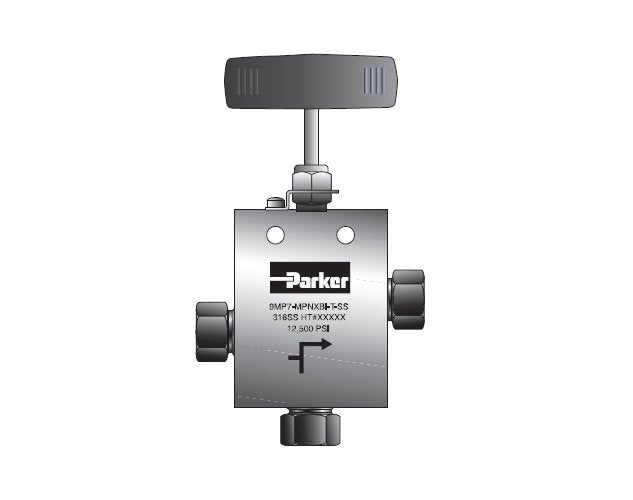

Parker MAN Series 3-Way/2 On-Pressure Needle Valve with MPI™ Connection
Parker MAN Series 3-Way/2 On-Pressure Needle Valve with MPI™ Connection
SKU:VAL-d6e456
Precision control up to 15,000 psi with Parker MAN Series 3-Way/2 On-Pressure Valve for liquid or gas media. Durable, reliable, and high performance.
Regular price
$139.99
Regular price
Sale price
$139.99
Unit price
per
Initiate Order
Parker MAN Series 3-Way/2 On-Pressure Needle Valve with MPI™ Connection
$139.99
Quantity: 1
Claim Your Seller Account
Parker MAN Series 3-Way/2 On-Pressure Needle Valve with MPI™ Connection
$139.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Parker MAN Series 3-Way/2 On-Pressure Needle Valve offers precise multi-turn control for liquid or gas media with shutoff options for pressures up to 15,000 psi. Featuring a Double Ferrule design for quick and reliable connections, these valves are compatible with MPI™ tube sizes from 1/4" to 1". With superior construction in CW 316 Stainless Steel or optional 2507 Super Duplex, non-rotating stem, metal-to-metal seating, and a range of stem tips for regulating flow or shutoff, this valve ensures bubble-tight shut-off, extended durability, and resistance to extreme temperatures from -423°F to 1000°F.
Product Specifications

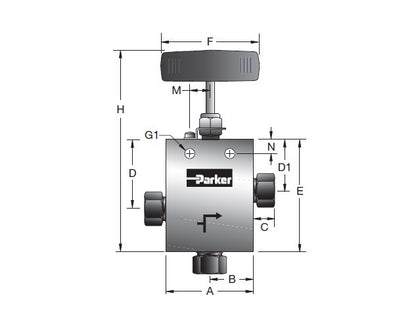

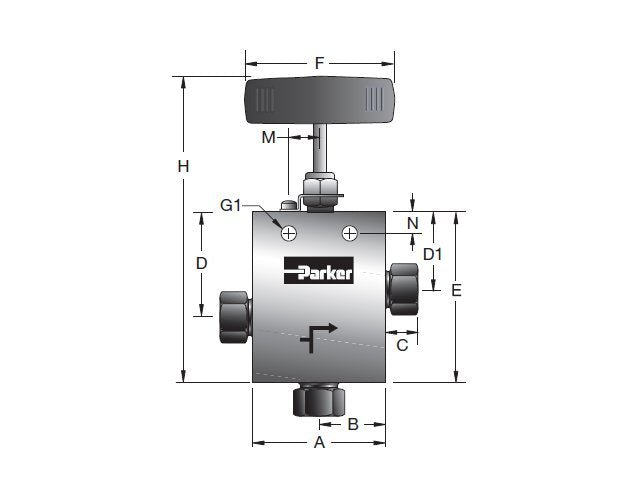

Dimensions A
3.00 in
Dimensions B
1.50 in
Dimensions Block Thickness
1.38 in
Dimensions B Stem Repair Kit
RSM907
Dimensions C
.69 in
Dimensions Connection
1/2 MPI™
Dimensions D
2.38 in
Dimensions D1
1.75 in
Dimensions E
3.88 in
Dimensions F
4.00 in
Dimensions G1
.34 in
Dimensions H
6.90 in
Dimensions M
.69 in
Dimensions N
.50 in
Dimensions Orifice
.312 in
Dimensions Pressure
15000 psi
Dimensions Rated Cv
2.0
Dimensions R Stem Repair Kit
RSM908
Specifications Features
Valve flow capabilities closely match associated tubing bore sizes CW 316 Stainless Steel Material is Standard, 2507 Annealed Super Duplex as option Rising stem/barstock body design Non-rotating stem prevents stem/seat galling Metal-to-metal seating achieves bubble-tight shut-off, longer stem/seat life in abrasive flow, greater durability for repeated on/off cycles, unmatched temperature performance and excellent corrosion resistance Temperature range from -423°F (-252°C) to 1000°F (538°C) Standard PTFE packing provides dependable stem and body sealing from -423°F to 450°F, additional options include PTFE/Glass (25%) for temperatures to 600°F and Graphite Yarn for temperatures to 1000°F Choice of Vee (shutoff) or Regulating Flow Stem Tips Replaceable Seat Option available with Right Angle 2-way body style Optional N-Dura Stem and Seat Coating or Stellite material option for severe service available
Specifications Parker Mpi Connection Benefits
MPI™ Connections are designed for both liquids and gases. They can be used on MPI™ 1/8th Hard tubing, Autoclave Engineers Medium Pressure Tubing, or Thick Wall Instrumentation Tubing in both 316 SS and 2507 Super Duplex materials. Suparcase® Technology creates a Corrosion Resistant Ferrule set for a strong, mechanical hold Double Ferrule design is proven but not interchangeable with standard tube fittings Longer Thread Engagement improves resistance to pressure and load on ferrules Molybdenum Disulfide Coated Gland Nut prevents galling and makes assembly easier.
